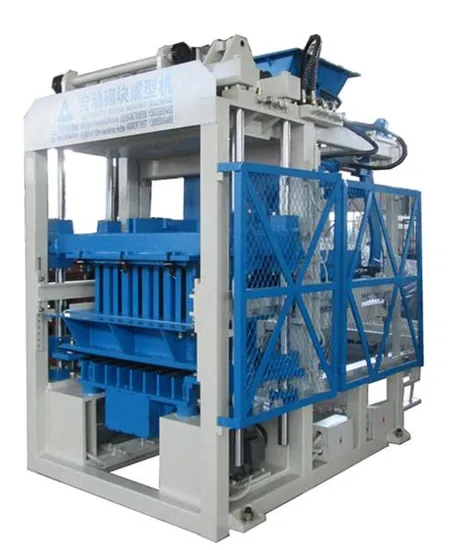

Q (F) T 4-15 Construction Machinery Automatic Block Making Machine

Product Description

Block machine Q(F)T 4-15 Product Description
1. Raw material: Crushed stone, sand, cement, dust and coal, fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.2. Applied products: Concrete blocks. Solid / hollow / cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, kerbstones, grass blocks, slope blocks, interlocking blocks etc.3. Applied fields: Widely used in buildings, road pavers, squares, gardens, landscaping, city constructions etc.
Product Parameters
Main technical parameters of block machine Q(F)T 4-15 1) Molding Method: Automatic charging, vibrating and pressing2) Control Mode: Full automatic PLC control3) Pallet Size: 880x500mm4) Molding Cycle: 15-20S (depend on material)5) Brick No. /mold:390 x 190 x 190mm hollow block 4 pcs /mold240 x 115 x 53mm solid brick 21 pcs /mold200 x 100 x 60/80mm color paver 14 pcs /mold Technical Parameters

Model	Q(F)T10	Q(F)T8	Q(F)T7	Q(F)T6	Q(F)T4
Pallet Size(mm)	1220x900	970x880	1150X750	880x680	880x500
Max. Molding Area(mm)	1100x860	920X830	1090X700	830x640	830X460
Min. Product Height(mm)	50	50	45	50	50
Max. Product Height(mm)	250	200	250	200	200
Cycle Time(s)	Solid Brick 15- 18 Paver 20-25	Solid Brick 15- 18 Paver 20-25	Solid Brick 15- 18 Paver 20-25	Solid Brick 15- 18 Paver 20-25	Solid Brick 15- 18 Paver 20-25
lf the required pallet size or product heights are not listed here, we are happy to make special plans for you.

Production Table

Model	Brick Size	Production(per mould)	Production(8h one shift)
Q(F)T10	Hollow Brick/390x190x190mm	10	≈14,400PCS/202m3
	Solid Brick/240x115x53mm	62	≈100,000PCS/135m3
	Paver/200x100x60/80mm	40	≈52,000PCS/1000m2
Q(F)T8	Hollow Brick/390x190x190mm	8	≈11,500PCS/160m3
	Solid Brick/240x115x53mm	48	≈80,000PCS/117m3
	Paver/200x100x60/80mm	32	≈44,000PCS/880m2
Q(F)T7	Hollow Brick/390x190x190mm	7	≈10,080PCS/140m3
	Solid Brick/240x115x53mm	46	≈77,000PCS/147m3
	Paver/200x100x60mm	30	≈40,000PCS/800m2
Q(F)T6	Hollow Brick/390x190x190mm	6	≈8,640PCS/120m3
	Solid Brick/240x115x53mm	32	≈53,700PCS/73m3
	Paver/200x100x60/80mm	21	≈29,000PCS/577m2
Q(F)T4	Hollow Brick/390x190x190mm	4	≈5,760PCS/80m3
	Solid Brick/240x115x53mm	21	≈35,000PCS/48m3
	Paver/200x100x60/80mm	14	≈20,100PCS/400m2
Difference between different raw material and ratio and production mode If a cuber is required,the capacity may be affected
