Tractor Disc Plough Disc Plow
| US$900.00 | 3 Sets (MOQ) |
Basic Info.
Model NO.
1LY315
Application Field
Agriculture
Farming Policy
Bed Planting Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Tractor
Arbor Configuration
Disc
Certification
CE, ISO9001
Color
as Request
Warranty
1 Year
Working Width
750mm
Disc
480mm
Matched Power
25-30HP
Transport Package
Ironframe
Trademark
AS REQUEST
Origin
China
HS Code
84321000
Production Capacity
1000 Sets/Month
Product Description

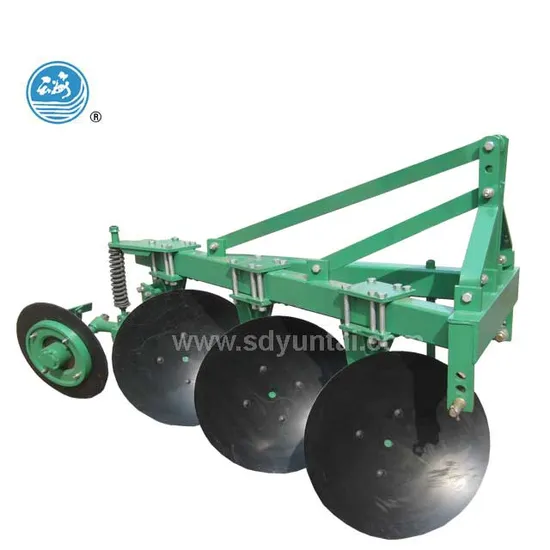

1LY DISC PLOUGHMatchable with tractor, it furrow soil when patches rotate, mainly applicable for complex land,
such as weedy land, heavy soil, farmland with bricks and stones, etc. no tied with grass, not
obstruction, can cut off stem of crop and overcome bricks and stones, with high efficiency, good quality
work, easy to adjust, simple to use,durable, etc
| Model | Number of discs | Diameter of disc (mm) | Working width(mm) | Working depth(mm) | Weight(kg) | Matched Tractor (hp) |
| 1LY-315 | 3 | 460 | 450 | 180 | 170 | 25-30 |
| 1LY-320 | 3 | 510 | 600 | 200 | 190 | 30-50 |
| 1LY-322 | 3 | 560 | 660 | 220 | 316 | 45-55 |
| 1LY-225 | 2 | 660/710 | 500 | 250-300 | 305-315 | 50-60 |
| 1LY-325 | 3 | 660/710 | 750 | 250-300 | 430-450 | 75-90 |
| 1LY-425 | 4 | 660/710 | 1000 | 250-300 | 500-525 | 90-100 |
| 1LY-525 | 5 | 660/710 | 1250 | 250-300 | 600-630 | 100-120 |
