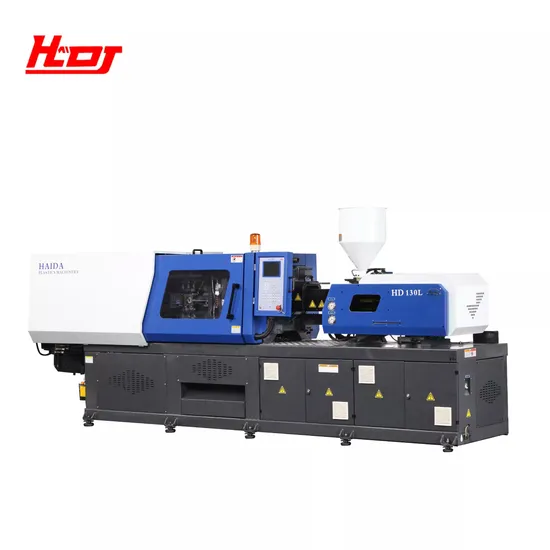

HD130L Haida 130ton Servo Energy-Saving Injection Molding Machine for Hot Sale
| US$22,000.00-23,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HD130L
Type
Plastic Injection Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Clamping Force
1300kN
Selling Point
High Precision Energy-Saving
Delivery Date
30days
MOQ
1set
Machine Dimension
4.45×1.12×1.93m
Transport Package
Wood Pallet
Specification
130T
Trademark
HAIDA
Origin
China
HS Code
8477101090
Production Capacity
4000sets/Year
Product Description
L series High precision Servo Energy-saving Injection Machine is a new series model launched on the base of original series, to meet higher requirement of customers. The overall standardization has implemented for the new series models, and the product structure has been simplified to ensure maximum reliability. Apply latest 3D control technology to ensure consistent high quality at lowest price. These products have adopted ergonomics design and components of famous brands, to ensure product quality of every detail. HAIDA L series high precision servo energy-saving injection machine with more advanced design concept, more reliable hardware configuration and higher cost performance is an ideal choice for mid-high end hydraulic machine users, and has built a new standard in the field of mid-high injection machine.Technical Parameter
| ITEM | UNIT | DATA | |||
| Injection Unit | Screw Diameter | mm | 38 | 40 | 45 |
| Screw L/D Ratio | L/D | 22.1 | 21 | 18.7 | |
| Injection Volume | cm3 | 199 | 220 | 278 | |
| Shot Weight | g | 181 | 200 | 253 | |
| Injection Pressure | Mpa | 201 | 182 | 143 | |
| Clamping Unit | Clamping Force | KN | 1300 | ||
| Opening Stroke | mm | 380 | |||
| Space Between Tie-Bars | mm | 420×420 | |||
| Mould Thickness(Min-Max) | mm | 150-450 | |||
| Hydraulic Ejection | KN | 45 | |||
| Ejector Stroke | mm | 130 | |||
| General | System Pressure | Mpa | 16 | ||
| Motor Power | KW | 13 | |||
| Heater | KW | 9.5 | |||
| Machine Dimension | m | 4.78×1.19×1.98 | |||
| Machine Weight | t | 3.8 | |||
| Mould Orientation Ring Diameter | mm | Φ125 | |||
| Nozzle Radius | mm | SR10 | |||
Injection Molding System
| The injection unit optimally designed for injection molding provides higher accuracy and ensures greater stability. The screw length-diameter ratio is more reasonable, the plasticizing ability is stronger, and may match the Special Engineering Plastic Screw, guarantees the product quality optimization. The Integral Guide Rod Seat is novel and beautiful, strong and reliable, and the injection is faster, more stable and more compact. Modular design, fully meet the requirements of personalized processing technology, to provide customers with more choices. |
Clamping system
| Adopting the international advanced concept, changing the mechanical properties of the clamping mechanism, significantly reducing the deformation of the template, and effectively improving the precision of the products. The distance between the pull rods is larger, and the mould shifting stroke is longer. Large ejection space, standard thimble forced reset mechanism, to meet the requirements of special mold forced reset. The platform shortens the forming cycle, improves the production efficiency, various hydraulic ejection modes, special processing of the pull rod, and the strength is reliable. |
Hydraulic System
| 1, the standard equipped with servo energy-saving pump system, using high-performance servo motor and famous oil pump, with high-quality and reliable driver, perfect to achieve high energy-saving, high precision, high response, low noise, low oil temperature and other excellent characteristics, the utility model has the advantages of compact structure, good self-priming property of the oil pump and little influence by the work 2, equipped with world-class brand hydraulic components, reasonable oil arrangements, smooth and reliable operation, significantly improve the efficiency of the heat will be smaller control; 3, equipped with self-sealing oil filter, machine maintenance easy; 4, according to customer demand, flexible matching and installation of a variety of special functions. |
Control System
| Water-proof and dust-proof sealed electric box is safe and reliable; the software functions are more powerful and can meet the needs of various mould forming processes; the Internet management system is reserved to realize the remote real-time monitoring and maintenance diagnosis of each injection molding machine, reasonable arrangement of production and other advanced management |
