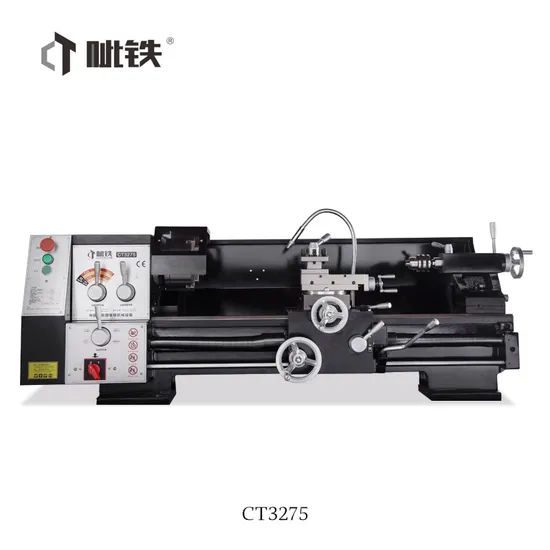

Manual Bench Lathe Metal Mini New Lathe Machine for Metal CT3275
Basic Info.
Model NO.
CT3275
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
580*650*1500mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
1000
Packaging & Delivery
Package Size
150.00cm * 65.00cm * 58.00cm
Package Gross Weight
360.000kg
Product Description
| Max. swing over bed | 320mm |
| Max. swing over cross slide | 210mm |
| Max.machining length | 750 |
| Spindle taper | MT5 |
| Spindle bore | 38mm |
| Max. travel of tail-stock sleeve | 70mm |
| Taper of tail-stock | MT3 |
| Middle carriage travel | 170mm |
| Small carriage travel | 100mm |
| Metric thread/Grade | 0.5~4mm/17 |
| Inch thread/Grade | 9~40T.P.I/20 |
| Transverse feed | 0.025~0.34mm/r |
| Longitudinal feed | 0.135~1.80mm/r |
| Spindle speed range/Grade | 60~1600r/min(12) |
| Motor power | 1.5KW |
| Net weight/Gross weight | 320KG/360KG |
| Overall dimensions | 1500x650x580mm |
| Packing Size | 1500x760x640mm |
