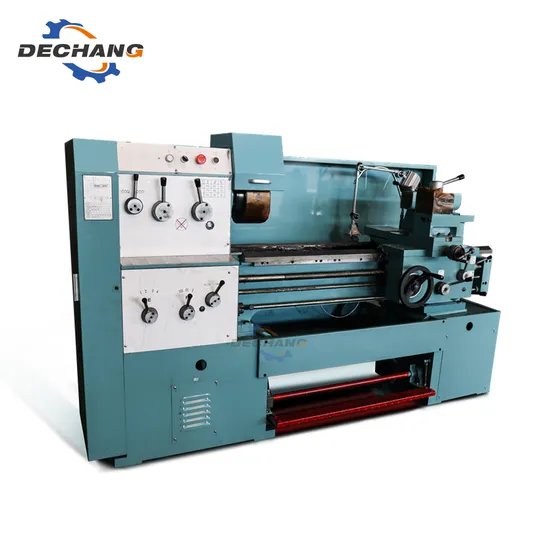

Low Cost High Precision Horizontal Lathe Machine C6150 High Accuracy Conventional Metal Lathe

Product Description

Low Cost High Precision Horizontal lathe machine C6150 High Accuracy Conventional Metal Lathe
Product Description
Features :
Rail width is 360mm
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard Accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Dead center
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gears
Optional Accessories
Steady Rest,Follow rest
DRO
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Drill chuck and holder
Face plate
Quick change tool post
Taper turning attachment
SPECIFICATIONS:

SPECIFICATIONS	Units	C6150	C6250
Swing over bed	mm	500	500
Swing over cross slide	mm	330	330
Swing over gap	mm	-	660
Distance between centers	mm	750/1000/1500/2000/3000	750/1000/1500/2000/3000
Spindle bore	mm	52(Optional:80)	52(Optional:80)
Spindle bore taper	-	MT6(Optional:Metric 1:20)	MT6(Optional:Metric 1:20)
Spindle speed steps	-	9	9
Spindle speed range	rpm	40-1400	40-1400
Cross slide travel	mm	250	250
Top tool post travel	mm	95	95
Tool size	mm	20 x 20	20 x 20
Longitudinal feeds range	mm/r	0.0832-4.6569	0.0832-4.6569
Cross feeds range	mm/r	0.048-2.688	0.048-2.688
Kinds of metric threads	kinds	19	19
Range of metric threads	mm	0.25-14	0.25-14
Kinds of inch threads	kinds	28	28
Range of inch threads	T.P.I.	2-40	2-40
Kinds of threads module	kinds	17	17
Range of threads module	MP	0.25-3.5	0.25-3.5
Tailstock quill diameter	mm	65	65
Tailstock quill taper	-	MT5	MT5
Tailstock quill travel	mm	130	130
Main motor power	kw	5.5	5.5
Coolant pump motor	kw	0.09	0.09
Weight for 750	kg	1250	1250
Weight for 1000	kg	1350	1350
Weight for 1500	kg	1550	1550
Weight for 2000	kg	1750	1750
Weight for 3000	kg	1950	1950
Dimension for 750	mm	2200x1140x1800	2200x1140x1800
Dimension for 1000	mm	2400x1140x1800	2400x1140x1800
Dimension for 1500	mm	2900x1140x1800	2900x1140x1800
Dimension for 2000	mm	3400x1140x1800	3400x1140x1800
Dimension for 3000	mm	4400x1140x1800	4400x1140x1800
