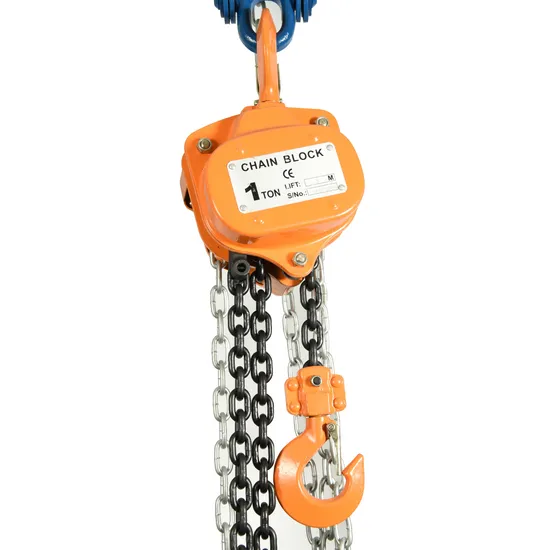

Zhc-a 0.25t to 20t Double Pawl Hand Lifting Manual Block Chain Hoist

Product Description

Manual chain block chain hoist with high quality, made by manufacture

1. The heavy duty top and bottom hook with casted safety latch.
2. Double pawl to increase the safety protection and ensure the hoist for reliable operation.
3. The ball bearing ensure the better mechanical efficiency.
4. Overload protection device is available.
5. Capacity Load: From 0.5T to 20T
6. Standard Lift: Fro 3M to 12M
7. Safe and reliable, durable
8. Have good performance, easy to use and easy to repair
9. (be) reasonably structured, smooth running, good appearance

Item No.		ZHC-A-0.25T	ZHC-A-0.5T	ZHC-A-1T	ZHC-A-1.5T	ZHC-A-2T	ZHC-A-3T-S	ZHC-A-3T-D	ZHC-A-5T	ZHC-A-7.5T	ZHC-A-10T	ZHC-A-15T	ZHC-A-20T
Capacity(kg)		250	500	1000	1500	2000	3000	3000	5000	7500	10000	15000	20000
Standard lift(m)		3	3	3	3	3	3	3	3	3	3	3	3
No.of load chain falls		1	1	1	1	1	1	2	2	3	4	6	8
Load Chain Dia.	mm	4*12	5*15	6*18	7*21	8*24	7*21	8*24	10*30	10*30	10*30	10*30	10*30
Effort required to lift Max. load(N)		235	249	284	380	343	372	343	372	368	382	378	382
Dimension(mm)	A(mm)	121	146	161	182	202	255	230	250	430	460	718	840
	B(mm)	114	138	154	176	177	205	176	189	189	189	189	189
	C(mm)	21	23	27	33	35	39	39	45	47	59	70	80
	D(mm)	31	35	40	45	50	55	55	65	67	85	95	106
	Hmin(mm)	280	350	383	442	485	554	565	677	760	780	950	970
Net weight(kg)		6.5	9.6	12	17.1	20.3	31.7	23.8	43.5	71.6	78.5	170	190

All our activities are accredited to ISO 9001 and based on delivering the highest quality possible, both in products and services, ensuring long-term benefits and optimum performance. Also we got the below certification: CE GS SUV, LR ABS ( anchors and anchor chains) Our rigging hardware is manufactured under exceptional quantity control and strictly adhered to the US, DIN, JIS, BS and AS standards.
About sample:
Cost with free If the quantity small, and the express charge account into buyer's, after receiving the official order, the seller deducts it in first order's
Please do not hesitate to contact us, should there be any questions or enquires.
----------------FAQ--------------

Q1: Does your workshop have products in stock?
A1: Yes, we have. But we only have standard-sized products; if you need customized products, it will take some time to manufacture them.

Q2: Whether you can offer customized service?
A2: Yes, the working condition of every customer is different. All of our products can be customized depending on customers' requirements. Please give us the information as straightforward as you can, so we can provide our best design to suit your demands.

Q3: How to confirm the working class of the crane?
A3: Please offer us the working environment, working duration, and frequency of the crane, and our engineer shall calculate it for you.

Q4: What kind of package for the hoist?
A4: Hoists and Electricals packed in wooden fumigation box. The main beams are covered by woven plastic cloth.

Q5: What kind of assistance can you offer with equipment installation?
A5: We have a professional installation team who has gone to many countries to assist with the installation. If you need us to send a technician to your factory, please let us know.

Q6: What payment terms can you accept?
A6: Our also supports L/C, D/A, D/P, T/T, Western Union, and MoneyGram payments. For example, FOB NINGBO, CIF, DDU, EX WORKS, etc.
