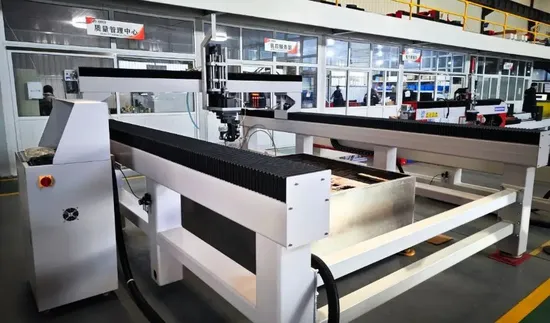

Automatic Water Jet Cutting Machine Touch Screen Control Water Jet Cutting Machine

Product Description

Automatic Water Jet Cutting Machine Touch Screen Control
Product ParametersI Main technical data:

Processing speed	0.5~3.5 m/min(depend on cut material)
Max no-load moving speed	15m/min
Installed Power	40kW
Water inlet pressure	0.2 ~ 0.4 Mpa
Maximum water discharge ratio	3.7 L/min
Oil recycling discharge ratio	10 ~ 71 L/min
Water compression ratio	20:1
Diamond orifice size	0.33 mm

Processing thickness: (Max. thickness for example)

Material	Glass	Ceramic	Marble	Steel	Aluminum	Porcelain slab
Thickness	80mm	40mm	80mm	40mm	100mm	30mm

II RC-450B Intensifier Unit RC-450B

Intensifier Parts
Tank body	Foshan RICH
Piston	Imported
Seal parts	Imported from America
High-pressure Cylinder	Imported from America
Ceramic plunger (ceramic rod)	Imported
High pressure seal	Imported
Water inlet valve	Imported
Accumulator	Foshan RICH (imported material)
Oil pump type	Variable Pump
Maximum oil pump pressure	31.5 MPa
Main motor power	37KW
Oil tank volume	7
Proportional valve	HUADE
Liquid Electricity reverse valve	America HYTEK
CNC controlling system software	IWCUT
CNC computer software	Auto CAD, win10
High-pressure water on/off switch structure	Pneumatic switch
X, Y, Zaxis motor and driver supplier	INVOANCE
Water pump	Italy
Track	Imported
Ball screw	Imported
Other equipment	S-chneider
