Moving Touch Control Numbering Machine for Metal Stain Rust Removing

Product Description

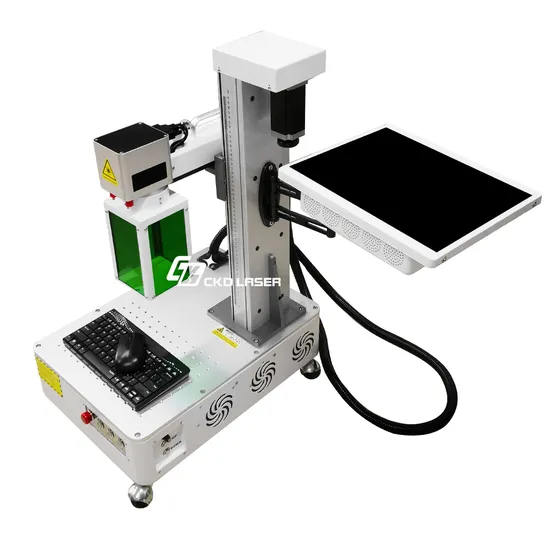

CKD-PLMD V21.09 is a super multi-function fiber laser marking machine, which can both moving and static work, including for marking, cleaning, engraving and cutting.
It's portable, e-focus, easy moving, with touch controller on machine, eye protective and high efficiency.
Users can easily put the marking head on material, then press down the trigger to shot laser to mark or clean.
CKD-PLMD V21.09 can be applied for any place, mark any content at any time. It mkes that possible to mark logo on huge material, such as car frame, big equipment, and any un-touchable location of a material that can not be separated to place on a printing machine.
Users can freely mark series number, QR code, bar code, vector figure or bit map photo, this machine support automatically number jumping with just once set.
This laser machine can mark metal, plastic and any other hard material with dark color.
You can push this small machine to your ideal work place conveniently.
Touch control helps users greatly improve efficiency. Touch control and never lost functions of marking software of EzCad2.
It doesn't need adjust focus before marking on kinds of material, directly touch the focus holder on the material to get a nice marking effect.
CKD-PLMD V21.09 has solved the problem of eye safety that has puzzled users for a long time when moving work with laser. With this machine, you don't need to wear additional laser protective goggle.
We won't let you waste resource if you use CKD-PLMD V21.09, it can easily become a standard laser marking machine at any time.
By pressing down the UP / DOWN button to make the three red dots to overlap, then get right focus easily, and the focus speed is adjustable.
Compared the old version moving marking machine, CKD-PLMD- V2109 can bring you more convenience:

	CKD-PLMD V21.09	Big old version
Size	Small, portable	Big, heavy
Focus holder	Precise eyes protective	Simple frame
Control	Both touch control and normal control	Without touch control
Flexibility	High	Normal
Moving scan scope	100*100mm	70*70mm
Static scan scope	100*100mm, can expand to be bigger	100*100mm, can expand to be bigger
Operation	Easy calibration when installing the focus holder back after static marking	Not easy calibration when installing the focus holder back after static marking
Laser power	20/30/50/60/100/120W	20/30/50/60/100/120W
Focus	Moving work: no need focus adjustment and precisely. Static work: E-focus	Moving work: no need focus adjustment and need a slight calibration after longer using. Static work: Manual

Focus holders' comparison:
Configuration of CKD-PLMD V21.09:

	CKD-PLMD-20	CKD-PLMD-30	CKD-PLMD-50	CKD-PLMD-60	CKD-PLMD-100	CKD-PLMD-120
Laser source	Fiber laser, Q-switched or MOPA			Fiber laser, MOPA
Laser power	20W	30W	50W	60W	100W	120W
Focus	Focus holder + E-focus
Focus holder	Optional: with acrylic or laser protective plate (OD4+, 190-450 & 850-1600nm)
Scan scope	100*100mm
Expand scope when static work	150*150/200*200mm			150*150/200*200/300*300mm
Dimension	1/4: 63*48*35cm 2/4:48*42*19cm 3/4:76*27*27cm 4/4:30*22*22cm				1/4: 80*65*58cm 2/4:48*42*19cm 3/4:76*27*27cm 4/4:30*22*22cm
Weight	50Kg (by cartons)				81 Kg(wooden box + carton)
