7tons 8tons 8mt 7mt 15000L 15cbm LPG Storage Tanker
| US$7,280.00-11,870.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW9080
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Tank Material
Q345r
Loading Capacity
7t, 7ton, 8tons, 8mt
Tank Size
15m3, 15cbm, 15000liters, 15000L
Thickness
10.0mm
Design Pressure
1.71MPa 1.77MPa 17.1bar, 17.7bar
Hydraulic Test Pressure
2.21MPa 22.1bar
Liquid Line
2′′/Dn50
Gas Line
2′′/Dn50
Stop Valve
China Local Brand
Pressure Gauge
China Local Brand
Thermometer
China Local Brand
Level Gauge
China Local Brand
Needle Valve
China Local Brand
Life Time
20 Years
Color
White/Blue/Yellow/Blue/Customized
Transport Package
Naked with Waxing Treatment
Specification
15000L, 15cbm, 15000liters, 15m3
Trademark
CLW
Origin
Suizhou, China
HS Code
73110090
Production Capacity
500 Unit/Month
Product Description
Product Description1. Storage medium of propane Storage Tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of propane Storage Tank: 5m³~200m³,2ton~100tons
3. Manufacturing standards of propane Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for lpg gas plant equipments as follows,
lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
Specification
| Parameter of 15000liters propane Gas Storage Tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 15cbm | Thickness of Shell | 10mm | |||
| Tank Material | Q345R | Thickness of End plate | 12mm | |||
| Overall Size | 6224*1820*2410 mm | Tank Net Weight | 3920 kg | |||
| Tank Diameter | 1800mm | Loading Capacity | 7125 kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420-550kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 20 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-80 | Safety Valve DN80 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||

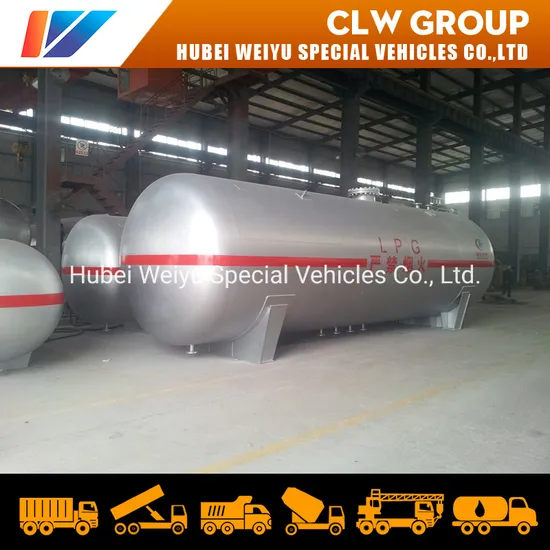

Reference Picture
Production Process of Propane Gas Storage Tank
We supply package solution for lpg station building as follows
Customer Inspection
Overseas Exhibition and After-sales Service
Contact Jacky for more details
Hubei Chengli Special Automobile Co., Ltd
Hubei Weiyu Special Vehicles Co.,Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Room 2614-2615, Block B, Longyang Time Square, Hanyang District, Wuhan, China
Tel&Fax: +86-27-84766488;
Mobile: +86-13667212560
Web: trucken.en.made-in-china.com
