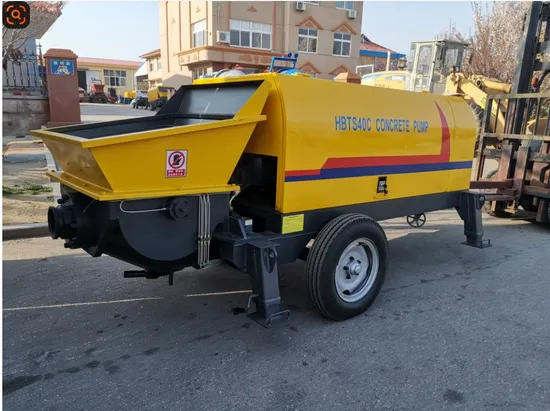

Fine Aggregate Concrete Conveying Pump Fine Stone Cement Mortar Pump Truck Mortar Concrete Ground Pump

Product Description

Product Parameters

Specification of Electric Motor Powered Concrete Pump		HBTS15-13-30	HBTS20-08-30	HBTS30-10-37	HBTS40-11-45	HBTS50-13-55	HBTS60-13-75	HBTS60-16-90	HBTS80-1-90	HBTS80-1-90
Theoretical conveying capacity	high pressure	7	9	13	16	22	37	37	46	47.5
	low pressure	15	18	26	37	46	62	63	77	78
Theoretical conveying pressure	high pressure	13	8	9.5	11	13	13	16	13	16
	low pressure	6	4.2	4.5	5.3	6.2	6.4	9.2	7.4	9.2
Conveying height	Horizontal	500	350	400	450	500	500	600	500	600
	Vertical	150	110	120	130	150	150	180	150	180
Rated power of the main power system (Kw)		30	30	37	45	55	75	90	90	110
Distribution valve form S-pipe valve
Maximum aggregate particle size		25	25	30	30	40	50	50	50	50
Concrete slump (mm)		100~230	100~230	100~230	100~230	100~230	100~230	100~230	100~230	100~230
Power form		motor power
Loading volume (m3)		0.34	0.36	0.4	0.5	0.5	0.5	0.6	0.6	0.6
Loading high (mm)		1050	1050	1180	1300	1350	1400	1400	1400	1400
weight (kg)		1480	1680	2200	2900	3200	4100	5200	5200	5600

Product Description
Applications:
1. Suitable for large-scale and efficient construction of fine aggregate concrete filling layer or mortar filling layer in underfloor heating engineering;
2. Suitable for the transportation of refractory and insulation materials in various engineering constructions;
3. Pressure grouting of various foundation piles; Tunnel over excavation and backfilling;
4. After installing spray accessories, it can be used as a spray pump.
Characteristics of conveying pump
1. The use of S-tube valve directional control can meet the transportation of fine aggregate concrete.
2. The eyeglass plate and cutting ring are made of high hardness and wear-resistant alloy material, which has a longer lifespan.
3. The export pressure is high, which can meet the transportation requirements of high-rise buildings and long-distance construction.
4. The hydraulic oil cooling adopts a forced air cooling system, which does not require a water source and is easy to use.
5. Equipped with anti pump function, it minimizes pipeline blockage to the greatest extent possible.
6. Equipped with an automatic centralized lubrication system to ensure the service life of rotating parts.
7. The electrical box is equipped with a wired remote control handle for easy operation.
