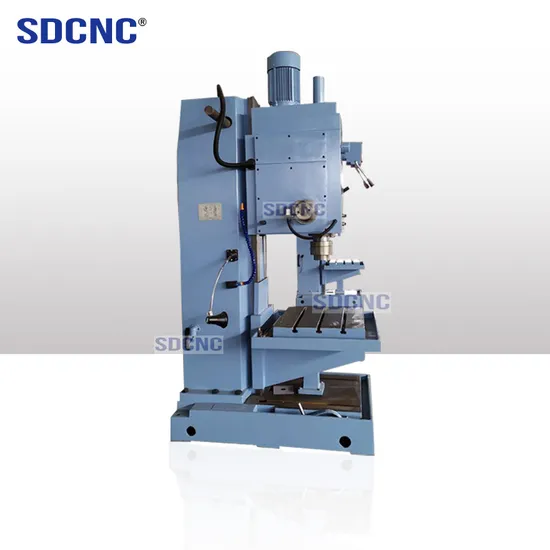

Z51100 Vertical Drilling Machine Square Column Drilling Machine Mechanical Metal Hole Machine
| US$5,200.00-5,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z51100
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Drilling Diameter
100mm
Max Feed Resistance
4500n
Distance From Spindle Axis to Column Gui
480mm
Spindle Travel
310mm
Spindle Box Travel
300mm
Transport Package
Wood Package
Specification
1465*970*3170mm
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
146.00cm * 97.00cm * 317.00cm
Package Gross Weight
3500.000kg
Product Description
Product Parameters
Description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Reinforced column, stable operation; Square worktable, convenient for processing different workpieces; ·Strengthen the reinforcement base to maintain excellent rigidity and load-bearing capacity.
Main technical specifications:
| Specifications | Z51100 |
| Max drilling diameter | 100mm |
| Max feed resistance | 45000N |
| Max. spindle allowable torque | 1150N.m |
| Spindle taper | Morse NO.6 |
| Distance from spindle axis to column guideway | 480mm |
| Spindle travel | 310mm |
| Spindle box travel | 300mm |
| Spindle speed | 26-320r/min (6) |
| The amount of feed(mm/rev) | 0.096-0.717r/min (6) |
| Working table stroke | 300mm |
| Working table surface size | 760×650mm |
| Distance from spindle nose to table surface | 850mm |
| Main motor power | 7.5kw |
| Cooling pump flow | 25L/min |
| Overall dimension | 1465×970×3170mm |
| N/W | 3500kg |
