Multi-Function Integrated Servo Control System
| US$80.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
T05-8100B
Number of Stator
Single-Phase
Function
Driving, Control
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC
Brand
Powsew
Poutput
550W
Phase
One Phase
Voltage
110V/220V
Motor
Direct-Drive Integrated
Warrenty
2 Years Warrenty
Special
Four Automaticity
Transport Package
Carton
Specification
32X27X21
Trademark
POWSEW
Origin
Lishui
HS Code
8501310000
Production Capacity
10000-20000sets/Year
Product Description

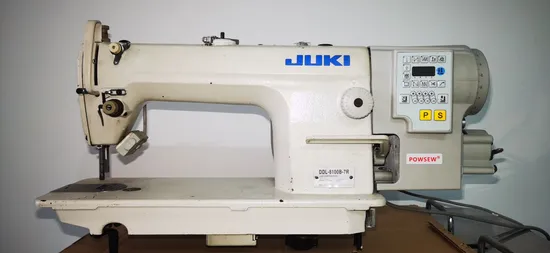

T05-8100B 4 Automaticity Direct-drive Integrated Servo Motor
A. Automatic backtacking B. Thread Trimming C.Up-down Needle positioning D. Presser Foot lifting
Apply to all kinds of Lockstitch and Zigzag sewing machines
Main Feature: 1. Multi-Function Integrated servo control system, more controllable and simple operation.
2.Integrative structure, equipped with bobbin winder.No need to shorten the shaft, remain the mechanical structure and performance of sewing machine. Easier installation and more reliable performance.
3.Powered by high performance direct-drive servo motor. Powerful torque, low noise, more stable quality and more energy efficient.
4.Protections: Over current, over voltage, locked rotor etc, safety and stability guarantee in operation.
5. Apply to the automatic lockstitch sewing machine of Juki, Brother and Sunstar.
6. It is also ok for the old Juki 8100B series sewing machine.
Please see the control system instruction as follow: It is very clear for you to see where Multi-Function's location is
The Parameter:
| Model | Application | Speed | Voltage | Power | Frequency |
| T05-8100B | Lockstitch for JUKI machine | 100-5500r/min | (220V) 180-240V | 550W | 50Hz |
| T05-8100B | Lockstitch for JUKI machine | 100-5500r/min | (110V) 90-140V | 550W | 60Hz |
| T05-8100B | Lockstitch for JUKI machine | 100-5500r/min | 220V | 750W | 50Hz |
