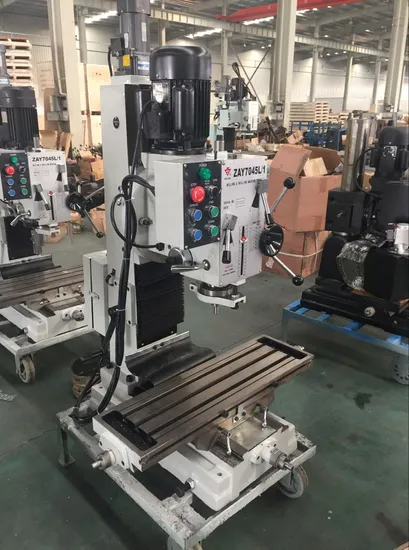

Heigtened Column Squre Column Drilling and Milling Machine with 45mm Drilling Capacity Zay7045L/1
| US$1,460.00-1,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZAY7045L/1
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Drilling Capacity
45mm
Max Face Mill Capacity
80mm
Range of Spindle Speed
80-1575 r.p.m
Motor Power
0.85-1.1kw
Transport Package
Wood Case
Specification
103*92*156cm
Trademark
Withe Eagle
Origin
Made in China
Production Capacity
1000 PCS/Month
Product Description
FeaturesMilling, drilling, boring, reaming and tapping
Head swivels 90 verticaly
Auto-lifting headstock electrically
Numeral depth gauge for spindle feeding
Heighten and steadier column
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Specification
| Model | ZAY7045L/1 |
| Max Drilling capacity | 45mm |
| Max Face mill capacity | 80mm |
| Max End mill capacity | 32mm |
| Max distance from spindle nose to table | 530mm |
| Min distance from spindle axis to column | 280mm |
| Spindle travel | 130mm |
| Spindle taper | M.T.4 |
| Step of speed | 12 |
| Range of spindle speed 50HZ | 80-1575 r.p.m |
| 2 poles motor 60HZ | 160-3150 r.p.m |
| Auto-feeding step of spindle | / |
| Auto-feeding range of spindle | / |
| Swivel angle of headstock (perpendicular) | ±90° |
| Auto-lifting for spindle (As customer's requirement) | Auto-lifting for spindle |
| Table size | 800×240mm |
| Forward and backward travel of table | 300mm |
| Left and right travel of table | 585mm |
| Motor power | 0.85/1.1KW |
| Voltage/Frequency | As customer's requirement |
| Net weight/Gross weight | 380kg/450kg |
| Packing size | 1030×920×1560mm |
| Loading amount | 12pcs/20' container |
