10000A Transistor Single Sided Spot Welder 18650 21700 26650 32700 Lithium Ion Battery Pack Spot Welding Machine with PC

Product Description

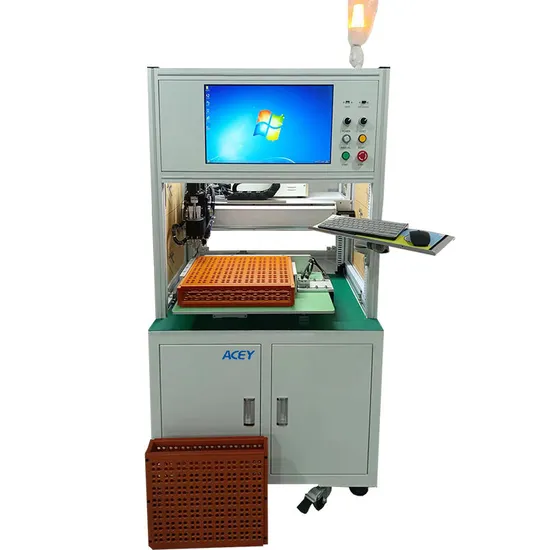

10000A Transistor Single Sided Spot Welder 18650 21700 26650 32700 Lithium Ion Battery Pack Spot Welding Machine with PC Product Description ACEY-S200B Single sided spot welding machine is used to weld nickel sheets with many lithium batteries into a group pack, which is suitable for lithium battery pack assembly in the factory for 14500 18650 21700 26650 32700 etc multi-parallel multi-series combination.
Features *Support breakpoint start, automatic start, and manual start.
*Cold solder joint and sealing off alarm.
*Easy program, support matrix, array and point program, can store 100 group parameters.
*Welding needle abrasion alarm.
*Build-in welding current monitor, can display real time welding current.
*Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
lithium battery packs spot welding.
*Can be matched with the production line of lithium battery group.
*Can store dozens process of different battery packs product, switching products without re-setting parameters.
*Can match a variety brand of spot welders.
Product Parameters

Product Name	Single-sided automatic spot welder
Y-axis travel	500mm (customizable)
X-axis travel	400mm (customizable)
Max spot welding speed	0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed	600mm/S
Max load electric cores	X direction: 26; Y direction: 26
Capable file group storage	100 groups
Operating system	embedded system human-machine interface
Transmission mode	Taiwan precision screw with guide rail
Driving mode	stepper servo motor
Repeat positioning accuracy	±0.02mm
Dimensions	L: 900mm, W: 900mm, H: 1650mm
Power	2000W
Machine weight	150KG
Max bearing weight of Y-axis	30KG
Input power supply	single-phase AC 220V/50Hz
Air Source	0.4-0.6 Mpa

Q1:How to order?
A: Please send us your purchase order by email or call us sales, or we can make the proforma invoice under your request.We need to know the following information for your order before sending your Pl. Payment methods? T/T, L/C, D/P and so on.
1)Product information-quantity, specification(size, material, technological if needed and packing requirements etc.)
2)Shipping information-company name, street address, phone number,destination sea port.
Q2: How to control quality?
A,All the raw materials by IQC(Incoming Quality Control) before launch whole process into the process after the screening,
B, Process each ink in the process of IPQC(Input Process Quality Control)patrol inspection.
C, After finished by QC full inspection before packing into the next process packing.
D, OQC before shipment for each slipper to do full inspection.
Q3:How do I install and operate the machine myself?
A: Our system development is based on the integrated development view, when you get the machine, just connect it to the power supply and the machine is ready to work, as the English software is already installed on the machine, all you need to do is to learn how to use the software, a complete English user manual will be sent to you with the machine.
Q4: How do I get technical support after purchase?
A: Our factory provides online technical support in English, you can get to know us easily online through Skype, Wechat, WhatsApp or E-mail. If you need any remote assistant support, we will support you through Team viewer software.
Q5:What's the warranty for the items?
A: We are very confident in our products and we package them very well so you will usually receive your order in perfect condition. The warranty on the equipment is one year (12 months) and if any part of the equipment is damaged within one year due to non-human factors, we will provide a replacement part free of charge.
Q6:Can I customize products?
A: Yes, OEM&ODM is available! we can provide not only standard machines but also customized machines according to your requirements. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
