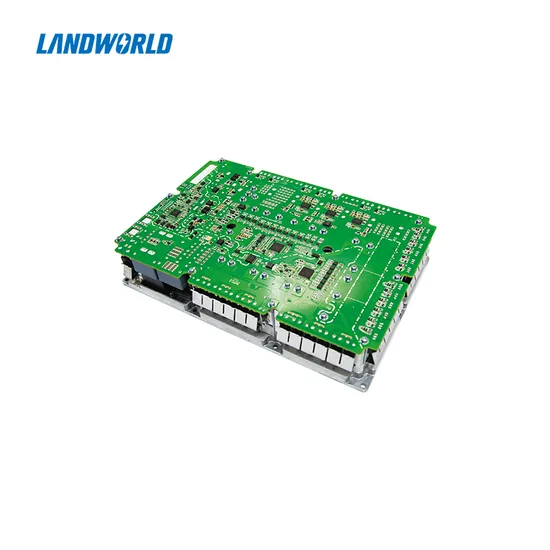

Landworld 11kw Charging Station on Board Charger Easy Integration
| US$2,000.00-2,500.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
LWC11K-380S640-M
Usage
EV Onboard Charger
Color
Gray
Specification
300x200x60mm
Trademark
LANDWORLD
Origin
China
Packaging & Delivery
Package Size
40.00cm * 40.00cm * 40.00cm
Package Gross Weight
10.500kg
Product Description
Product Features: Product dimension: 300x200x60mm Product weight: ≤6.5KG Cooling method: by aluminum Support on-line upgrade and fault diagnosis High power density, modular design, easy for modular integration Full digital SW design, redundant protection function design Multi 6.6KW OBC can be paralleled; (2*6.6Kw , 3*6.6KW, 4*6.6KW OBC) Main Technical Parameters
| Items | Technical Spec. | Remarks |
| Operation temperature | -40-85ºC | By aluminum |
| Nominal output power | 11kW | 6.6kW @ Single phase input |
| Input voltage | Three phase: 304-456Vac (Line to line, three phase four lines) | Single phase: 175-265VAC |
| Nominal Vout | 450-750VDC | |
| Nominal output Current | 20A | Single phase input: 12A |
| VCC power supply | 9-32Vdc | VCC |
| Eff. | ≥94% | @Nominal voltage |
| Voltage accuracy | ±1% | |
| Current accuracy | ±3% | |
| Low voltage Wake up | 12/24Vdc&200mAmax (WAKE_UP signal) | Wake up BMS/VCU |
| Wake up method | CAN/AC/CC/CP | Support booking charging |
| CAN communication | CAN-BUS | |
| Static current | ≤2mA | Current consumption at sleep mode or standby status |
| EMC standard | GB/T18387-2008, EN 55022 | EMC standard |
| Protection features | Input OVP/UVP, output OVP/UVP,OTP, OCP, output short-circuit protection, CAN communication breakdown protection | |
