Dry Oven Vacuum Pump, Corrosion-Resistant Organic Solvent Dry Oil-Free Pump

Product Description

Principle

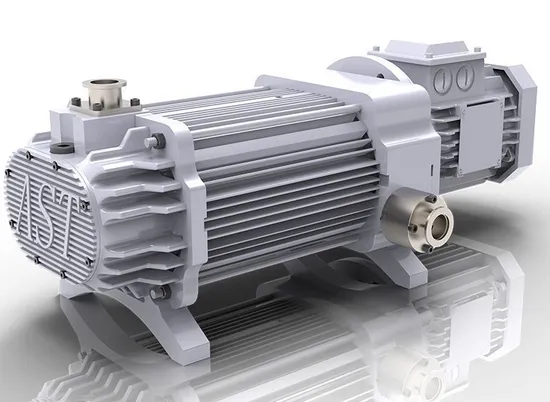

Small air-cooled dry screw vacuum pump, corrosion-resistant and oil-free vacuum pump
Principle
WINDRYOur Screw Vacuum Pump is masterfully crafted with dual paralleled screw rotors and a meticulously designed pump body, creating multiple sealed spaces. The rotors and pump body are engineered to maintain minute clearances (ensuring no contact, no friction). Driven by reverse gears, gas is seamlessly and continuously transferred from the inlet to the outlet, ensuring superior performance.
With its frictionless design, the dual rotors and pump body eliminate the need for lubrication, ensuring the delivery of clean gas. The continuous gas transfer, paired with a streamlined pathway, results in high efficiency. The outlet, positioned lower than the screw rotors, enhances drainage capability and simplifies cleaning. With no intermediate bulkhead, our design surpasses claw and rotor vacuum pumps in drainage and exhaust efficiency, while being remarkably easy to maintain. (Click on inquiry)
Advantages
The WINDRY series dry screw vacuum pump boasts groundbreaking advancements with its fifth-generation compound variable pitch screw technology, offering unparalleled performance and efficiency. Air cooling ensures optimal temperature regulation, enhancing overall efficiency and longevity. Energy Saving Low exhausting temperature enhances operational safety and efficacy. Dedicated to Environmental Protection Crafted as the smallest size screw vacuum pump, our product exemplifies compact and efficient design. User-friendly design guarantees easy operation for enhanced usability. Boasting reliable performance characteristics, this vacuum pump stands at the forefront of industry trends, ensuring dependable operation.
Applications
The WINDRY is the perfect choice for applications where oil contamination is unacceptable, especially in corrosive environments. Its versatility is showcased across a wide range of industries: Invaluable in Medical Instruments and Analysis Instruments Pivotal in the creation of Biological Products Essential for Pharmaceutical Preparation processes Indispensable in Food and Medicine Packaging applications Efficient in Gasoline Vapor Recovery, Integral to Film Preparation Aiding High Science Engineering and Chemical Analysis Crucial for the Semiconductor Industry Vital for the Micro-Electronics Industry Instrumental in the Solar Energy Industry A valuable asset in R&D labs, and more.(Click on inquiry) Features Employing advanced fifth-generation composite screw technology, our pump delivers exceptional performance and reliability. Our dedication to environmental protection shines through with a design that forgoes oil and water, eliminating pollution. This ensures a clean vacuum and facilitates the recycling of pumped materials. Our energy-saving technology, utilizing variable pitch, reduces energy consumption by an impressive 30%, optimizing operational efficiency. Engineered with chemical corrosion resistance, featuring a protective layer that guards against harsh environments. Our air cooling structure offers enhanced convenience and simplicity, promoting ease of use. Manpower conservation is achieved with an extended maintenance cycle that spans thousands of hours. Tailored with a limit vacuum height of <1 Pa, customizable to <0.5 Pa, this pump offers a versatile operating range from vacuum to atmospheric pressure. Featuring state-of-the-art mechanical sealing, our pump ensures reliable sealing, unobstructed exhaust, and robust liquid handling capabilities. Lightweight construction using new materials ensures minimal weight, while precision machining guarantees low noise levels. (Click on inquiry)
Technical Specifications

Mode		Unit	WIN 018	WIN 028	WIN 036	WIN 048	WIN 060	WIN 080
Pumping Speed(50/60 Hz)		m³/h	18/22	28/32	36/42	48/56	60/72	80/96
Ultimate Vacuum		Pa	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
Motor Power		KW	1.1	1.1	1.1	1.5	1.5	2.2
Motor Speed (50/60 Hz)		Rpm	2840/3400
Connection Type	Inlet Size		KF 25	KF 25	KF 25	KF 40	KF 40	KF 40
	Outlet Size		KF 25https://aisituo.en.made-in-china.com/contact-info.html	KF 25	KF 25	KF 25	KF 25	KF 25
Cooling Method		Air Cooled
Oil		Shell TURBO T46 Turbine oil
Sealing method	HV	Mechanical Seal
	LV	Mechanical Seal+Double Lip Seal
Noise		db	63	63	65	65	66	66
Weight(WithOut Motor)		kg	30	35	38	45	48	44

Dimensions
Performance Curve
Detail photos

Optional accessories
Export muffler Quick connect clamp Stainless steel inlet filter

Exhibition photos
Q:Do you produce screw vacuum pumps yourself ?
A:Yes, we develop and produce screw vacuum pumps ourselves.
Q:How is the price determined ?
A:The webpage indicates a reference price, and the specific price depends on different configurations.
Q: What data do I need to provide if I want to purchase ?
A: You need to provide the operating conditions, extraction volume (L/s or m ³/h ), and ultimate pressure (Pa, mbar or torr).
Q:What models can you provide ?
A:We can improve 6 products with a capacity of 20-80m ³/h, namely 20 m ³/h, 28 m ³/h, 36 m ³/h, 48 m ³/h, 60 m ³/h, and 80 m ³/h.
Q:How long is the supply cycle approximately ?
A:Within a normal month, mass customization is related to quantity.
Q:How long is the warranty period ?
A:The warranty period for normal use of the equipment is 1 year. Improper use or exceeding the warranty period, customers can choose to send it by mail or provide remote video assistance for handling.
Q:What are the transportation methods ?
A:You can choose between sea freight and international express delivery, and specific details can be communicated via email.
Q:How can I contact you ?
A:Can be done via email Contact us through online consultation. (Click on inquiry)
