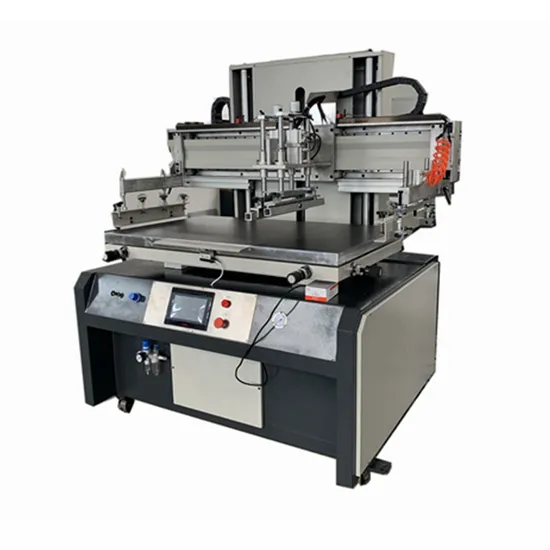

Vertical Screen Printing Machine Xf-PS6090

Product Description

Product Description USED:
Be applied to the flat printing for glass,CD,nameplate,stickers,credit card,ceramic colored paper,wooden toy puzzles,PCB,SMT tin ointment,and membrane switches in electronic industry.It is also applicable to the flat printing such as golden and silver cardboard,metal sheet,and other products with the material of PVC,which have high requirement in overprinting.
FEATURE:
1.vertical structure with the motor driven printing plate goes up and down vertically,and the motor driven print head moves left/right.
2.Single chip controlled circuit,printing and plate goes up and down using independent driving source.
3.Pneumatic controller controls the printing knife moves up and down,photocell eye controls the stroke,which is independent to tune.
4.Set manual/semi-automatic/automatic three modes,the break time of printing is digital controlled.
5.Independent deigned head rising and down setting,makes it convenient to clean the scraping blade/reclaiming blade,screen plate during loading and unloading.
6.Double guide column master the clamps arm and install the adjusting device to adjust the distance between plates at the same time,which is convenient to tune.
Detailed Photos
Product Parameters

Model	XF-PS6090
Max.Print Size	600 x 900mm
Max.Frame Size	900 x 1300mm
Work Platform Size	700 x 1100mm
Material Thickness	≈40mm
Off-network	0 N 20mm
Print Speed	800pcs/h
Weight(Kg)	850kg
Overall Dimension	1460 x 1070 x 1750
Print Motor	0.2Kw
Print Shaft	2.2Kw
Air Motor	0.75Kw
Total Power	3.15Kw
