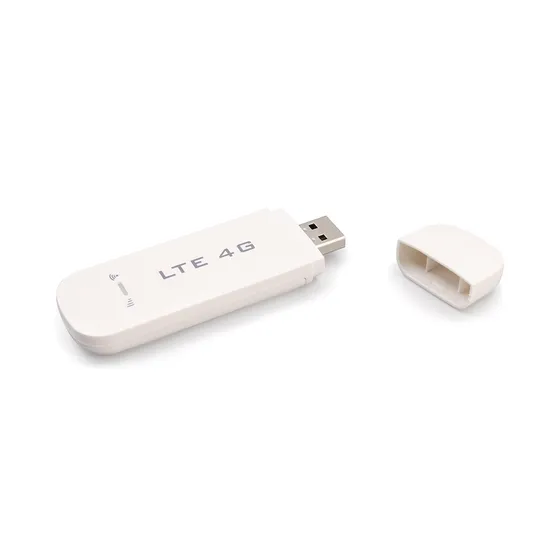

Cat4 150Mbps Top Economical 3G 4G LTE Dongle USB Modem Mobile Signal Hotspot WiFi Adapter Dongle Router

Product Description

Sunhans Usb Modem 150Mbps LTE FDD 2G 3G 4G Portable Mini Wifi Router with SIM Card Slot Mifis Dongle
Product DescriptionMain futures :
1. The WiFi router can support more than 30 frequencies, suitable for operators in more than 30 countries, support frequency customization, OEM & ODM.
2. WiFi hotspot designed with sim card slot, more convenient to use.
3. Wireless connection up to 150Mbps, you will enjoy a powerful network experience for surfing, chatting, or playing online.
4. Supports multiple 4G LTE Bands and 2.4GHz WiFi.
5. Design lightweight, easy to carry, you can use anytime and anywhere.
6. Supports micro SD memory extension up to 32GB (not included), more capacity for more doing.
7. Supports Standard 6 PIN SIM card interface, SIM/USIM card, compliant with 3GPP 31.101 and 31.102.
8. Built-in 4G / 3G + WiFi antenna, offer optimal coverage and reliability, boost signal strength.
Product Parameters

SHM1802D 4G WiFi Dongle V2.0
Basic Product Information	Item		Remark
Model	4G WIFI Dongle		4G WIFI Dongle
Platform	Marvell 88MP1802
Band/Mode	Frequancy	FDD-LTE: B1/B3/B7/B8 or B20 UMTS:B1/B2/B5/B8 GSM Quad Band	FDD-LTE: B1(2100)/B3(1800)/B7(2600)/B8(900) or B20(800) UMTS(WCDMA): B1(2100)/B2(1900)/B5(850)/B8(900) GSM: Quad Band (850/900/1800/1900) Remark: you can only choose one band on this model for B8 or B20
HW Description		Item	Remark
CPU (MHz)	CPU (MHz)	550MHz
Air interfaces	GSM/GPRS/EDGE	GSM/GPRS/EDGE	DTM (simple class A), multislot class 12
	TD-SCDMA	TD-SCDMA	R5 1.28 TDD-HSDPA 2.8 Mbps DL R7 1.28 TDD-HSUPA 2.2 Mbps UL R8 1.28 TDD-HSPA+ 4.2 Mbps DL / 2.2 Mbps UL
	UMTS	UMTS	R99 384 kbps DL / UL R5 HSDPA 7.2 Mbps DL R6 HSUPA 5.76 Mbps UL R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL
	TDD-LTE	TDD-LTE	Cat4 150 Mbps DL / 50 Mbps UL
	FDD-LTE	FDD-LTE	Cat4 150 Mbps DL / 50Mbps UL
Memory		Item	Remark
System memory		256MB
External memory		up to 32GB	Micro-SD
WIFI		Item	Remark
Frequency Band		2.4GHz
802.11b/g/n		up to 150Mbps	Modes supported: 802.11b mode 802.11g only mode 802.11n only mode 802.11b/g only mode 802.11b/g/n mode 802.11n 1x1 (2.4GHz, 20MHz)
User amount		Max to 10
Interface
Antenna		4G/3G/2G Main antenna 4G + 3G antenna WiFi antenna	Internal
USB	USB	Standard USB 2.0	USB 2.0 High Speed
SIM/USIM Card slot	SIM/USIM	Yes	Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102
Micro-SD Card slot	SD	Yes	Micro-SD Card
L*H*W (mm)		96*34*12mm
Weight(g)		32g
Other Description		Item	Remark
RF Power Spec		Class 4 for UMTS/HSPA/LTE; Class 4 for GSM 850/900; Class 1 for GSM 1800/1900; Class E2 for EDGE 850/900/1800/1900
Power supply input		USB 2.0 5V-1A
Software		Item	Remark
System		ucos
UI	UI	WEB UI
Operation system		Windows / Mac OS /IOS /Android
Operation		Internet Explorer/ Mozilla Firefox/ Google Chrome/ Safari
Environmental reliability test condition		Item	Remark
Normal Operation		0°C to +45°C
Restricted Operation		-10°C to +55°C
Storage		-20°C to +70°C

Package contents: 1 x Wireless 4G dongle 1 x User manualInstallation Instructions Company ProfileAbout us
After Sales ServiceOur Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
