Crankshaft Grinder Mq8260c I Talama Makinasi Crankshaft Grinding Machine for Steel

Product Description

Product Description
Introduction

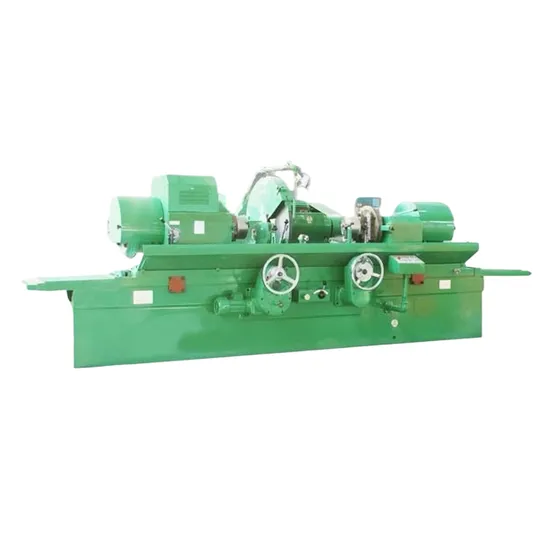

The crankshaft grinding machine MQ8260A is a simple structure,easy operation,wide applicability of the crankshaft grinder for automobiles,stractors,siesel engine repair shop crankshaft grinding spindle crank neck and neck,but also fo cylinderical grinding machine for general excircle grinding.
Structural Features:
machine tools,electrical,hydraulic control,mannual control bassel. base type machine left and right using adjustable cross chuck chuck.improve work piece installation,adjustment efficiency.
With top or the workpiece clamping chuck.the head frame motor drive,manual feed grinding

Longitudinal movement,there is also a manual manever,manenver the table in a fast-moving action can only point for jumping stalls or adjustments. About the amount of cross chuck maximum adjustable vertical 110mm,transverse 2mm,the chuck further hang a trace swivel adjustment,the range of 0-30 °
Parts,wheel,bench,cooling pump,oil pump driven by a separate motor.

Specifications			Unit	MQ8260A	MQ8260B	MQ8260C	MQ8240A
Max work diameter*Max work length			mm	580*1600	580*1800	580*2000	400*750
Capacity	Max swing over table	mm	580	580	580	400
		Workdiameter ground with steady rest	mm	30-100	30-100	50-120	20-110
		Throw of crankshaft	mm	110	110	120	60
		Max.work length ground :in 3-jaw chuck	mm	1400	1400	1800	630
		Between centers	mm	1600	1600	2000	750
		Max.work weight	kg	120	120	150	30
Head-stock	Centre height	mm	300	300	300	210
		Work speed	rpm	25/45/95	25/45/95	25/45/65/100	40/80
Wheel head	Max cross movement	mm	185	185	185	150
		Wheelhead rapid approach&withdrawal	mm	100	100	100	100
		Wheelhead feed per turn of cross feed handwheel	mm	1	1	1	1
		Wheel feed per grad of cross feed handwheel	mm	0.005	0.005	0.005	0.005
Grinding wheel	Wheel spindle speed	rpm	740/890	740/890	740/890	890
		Wheel peripheral speed	m/sec	25.6-35	25.6-35	25.6-35	25.6-30
		Wheel size	mm	900*32*305	900*32*305	900*32*305	750*32*305
Table	Table traverse per turn of handwheel:coarst	mm	5.88	5.88	5.88	14
		Table traverse per turn of handwheel:fine	mm	1.68	1.68	1.68	1.55
		Table swivel(taper 18/100)	°	5°	5°	5°	5°
		Table swivel pergrad of scal(taper1:50)	'	10'	10'	10'	10'
Overall capacity of motor			kw	9.82	9.82	11.12	6.92
Overall dimensions(L*W*H)			mm	4166*2037*1584	4166*2037*1584	4900*2037*1584	2860*1960*1650
Weight			Kg	6000	6200	7000	4800
