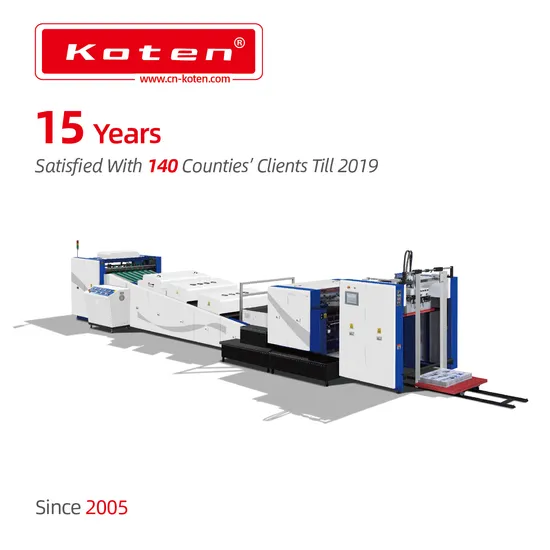

80-600GSM Cultural Paper Koten by Strong Export Wooden Case. Spot UV Varnishing Machine
| US$20,000.00-30,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
SD-1040
Automation
Automatic
Customized
Non-Customized
Condition
New
Process
Finishing Process Machine
Usage
Packing Paper Machine
Automatic Grade
Semiautomatic
Computerized
Yes
Transport Package
by Strong Export Wooden Case.
Specification
Export Standard
Trademark
Koten
Origin
China
Production Capacity
100sets/Month
Product Description
Spot UV coating sample.
| High-speed U.V Spot and Overall Coating Machine For Solvent Base | ||||
| Model: SD-1040 | ||||
| Standard Equipments Consists Of: | ||||
| (1). | Automatic Stream Feeder. | |||
| Standard Features: | ||||
| 1. | Max loading height: 1100mm | |||
| 2. | Lower-sway front guide; | |||
| 3. | Continuous rotation press-wheel side guide; | |||
| 4. | Mechanical and electrical double sheet detector; | |||
| 5. | Mis-sheet, sheet-misalignment control by photoelectric inductor; | |||
| 6. | Emergency stop equipment; | |||
| 7. | Bar against foreign objects; | |||
| 8. | Protection mechanism of loading table elevation; | |||
| (2). | .2- Roller And 2-Cylinder System UV Coating Unit | |||
| Standard Features: | ||||
| 1. | Offset upper-sway pass-sheet device; | |||
| 2. | Suitable for thin/thick paper pressing roller gripper; | |||
| 3. | Quick plastic plate clipping, easy assembling, and easy adjustment; | |||
| 4. | two-roller oil supplying device with fixed oil amount and even oil layer; The two roller at the head of the | |||
| . | main coater for easy changing photopolymer. | |||
| 5. | Automatic circulation temperature control ele-thermal coating tank with capacity: 40 KG; Supported by | |||
| rolling bearing and small resistance and easy maintenance. | ||||
| 6. | Integrated lubrication for convenient daily maintenance; | |||
| 7. | Low speed inching motor; | |||
| 8. | Round hand wheel knob with safety device; | |||
| (3). | UV Curing Equipment And Conveyor | |||
| 3- U.V Lamps Curing Equipment; | ||||
| Safety Devices: | ||||
| 1. | Full/half lamp device, automatic change to half lamp at mis-sheet; | |||
| 2. | Temperature control device with safety protection; | |||
| 3. | U.V leak-proof protection hood; | |||
| 4. | Automatic lamp-off device when conveying net stops; | |||
| Teflon net with conveyor; | ||||
| Full distance bottom sucker; | ||||
| Net belt automatic correction device; | ||||
| Conveying net operates at the same time with main machine electric appliances with speed co-adjustment and single | ||||
| Micro-adjustment; | ||||
| High-speed U.V Spot and Overall Coating Machine For Solvent Base | ||||
| Model: SD-1040 | ||||
| (4). | Automatic Delivery Unit | |||
| Standard Features: | ||||
| 1. | Max loading height: 1100mm; | |||
| 2. | Sheet counter; | |||
| 3. | Thin paper guiding device; | |||
| 4. | Safety device for delivery table elevation; | |||
| 5. | Sucking conveyor; | |||
| (5). | Speed Adjustment By Inverter, Terminal Connection, PLC Control | |||
| Optional Equipment: | ||||
| (6). | Coating Part For Water Base And I.R Drying Unit. | |||
| Standard Features: | ||||
| 1. | Independent varnishing supply device and convenient for changing varnishing type. | |||
| 2. | High quality and high efficiency drying system. The reflective hood of I.R. Quartz-tube can accumulate heat | |||
| on the sheet surface. | ||||
| Standard Equipments: | Option. | |||
| 1. Auto Stream Feeder. | (a) on the ceramic anilox roll | |||
| 2.2-Roller And 2-Cylinder System UV Coater. | Feeding Non Stop mechanism | |||
| 3. UV 3-Lamps Curing Equipment. | Non Stop Delivery | |||
| 4.Automatic Delivery Unit. | Air conditioning cooling | |||
| 5.Water-based coating equipment. | Pre-Loading Doll | |||
Floor Plan.
Parts Introduction.
Main Specifications.
| Model | HIS-1050 | HIS-1450 |
| Max. sheet size | 730x1050mm | 1100x1450mm |
| Min. sheet size | 310x406mm | 350x460mm |
| Max. coating size | 720x1030mm | 1090x1440mm |
| Suitable Paper Thickness | 128-600gsm | 128-600gsm |
| Coating registration accuracy | +0.2mm | +0.2mm |
| Max. speed | 7200pcs/h | 6000pcs/h |
| Power | 42kw | 47kw |
| Machine size | 9576x2300x2010mm | 10247x3600x2300mm |
| Machine weight | 8000kg | 9500kg |
| High-speed U.V Spot and Overall Coating Machine For Solvent Base | ||||
| Standard Equipment Consists Of: | ||||
| (1). | Automatic Stream Feeder. | |||
| Standard Features: | ||||
| 1. | Max loading height: 1100mm | |||
| 2. | Lower-sway front guide; | |||
| 3. | Continuous rotation press-wheel side guide; | |||
| 4. | Mechanical and electrical double sheet detector; | |||
| 5. | Mis-sheet, sheet-misalignment control by photoelectric inductor; | |||
| 6. | Emergency stop equipment; | |||
| 7. | Bar against foreign objects; | |||
| 8. | Protection mechanism of loading table elevation; | |||
| (2). | .2- Roller And 2-Cylinder System UV Coating Unit | |||
| Standard Features: | ||||
| 1. | Offset upper-sway pass-sheet device; | |||
| 2. | Suitable for thin/thick paper pressing roller gripper; | |||
| 3. | Quick plastic plate clipping, easy assembling, and easy adjustment; | |||
| 4. | two-roller oil supplying device with fixed oil amount and even oil layer; The two rollers at the head of the | |||
| . | main coater for easy changing photopolymer. | |||
| 5. | Automatic circulation temperature control ele-thermal coating tank with capacity: 40 KG; Supported by | |||
| rolling bearing and small resistance and easy maintenance. | ||||
| 6. | Integrated lubrication for convenient daily maintenance; | |||
| 7. | Low speed inching motor; | |||
| 8. | Round hand wheel knob with safety device; | |||
| (3). | UV Curing Equipment And Conveyor | |||
| 3- U.V Lamps Curing Equipment; | ||||
| Safety Devices: | ||||
| 1. | Full/half lamp device, automatic change to half lamp at mis-sheet; | |||
| 2. | Temperature control device with safety protection; | |||
| 3. | U.V leak-proof protection hood; | |||
| 4. | Automatic lamp-off device when conveying net stops; | |||
| Teflon net with conveyor; | ||||
| Full distance bottom sucker; | ||||
| Net belt automatic correction device; | ||||
| Conveying net operates at the same time with main machine electric appliances with speed co-adjustment and single | ||||
| Micro-adjustment; | ||||
| High-speed U.V Spot and Overall Coating Machine For Solvent Base | ||||
| (4). | Automatic Delivery Unit | |||
| Standard Features: | ||||
| 1. | Max loading height: 1100mm; | |||
| 2. | Sheet counter; | |||
| 3. | Thin paper guiding device; | |||
| 4. | Safety device for delivery table elevation; | |||
| 5. | Sucking conveyor; | |||
| (5). | Speed Adjustment By Inverter, Terminal Connection, PLC Control | |||
| Optional Equipment: | ||||
| (6). | Coating Part For Water Base And I.R Drying Unit. | |||
| Standard Features: | ||||
| 1. | Independent varnishing supply device and convenient for changing varnishing type. | |||
| 2. | High quality and high efficiency drying system. The reflective hood of I.R. Quartz-tube can accumulate heat | |||
| on the sheet surface. | ||||
| Standard Equipments: | Option. | |||
| 1. Auto Stream Feeder. | (a) on the ceramic anilox roll: | |||
| 2.2-Roller And 2-Cylinder System UV Coater. | Feeding Non Stop mechanism : | |||
| 3. UV 3-Lamps Curing Equipment. | Non Stop Delivery : | |||
| 4.Automatic Delivery Unit. | Air conditioning cooling: | |||
| 5.Water-based coating equipment. | Pre-Loading Dolly : | |||
