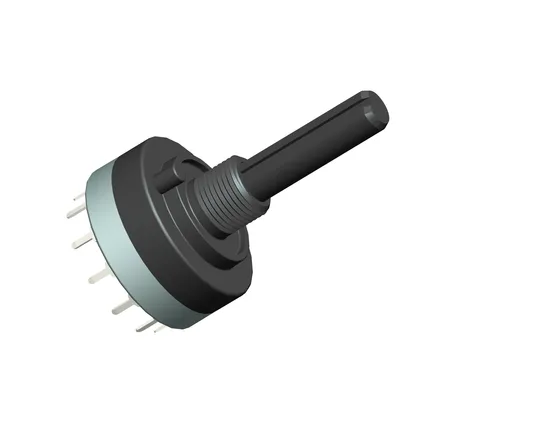

26mm Rotary Switch Vertical Type Insulated Shaft Rotary Multi-Way Switch for Amplifiers

Product Description

26mm Rotary Switch Vertical Type Insulated Shaft Rotary Multi-Way Switch for Amplifiers
Description
Rotary switches can be used to replace the rotary pulse generator with the analog function of traditional resistive potentiometers. These rotary switches are usually used in the man-machine interface of the instrument front panel and the audio-visual control panel. The rotary switches use orthogonal optical encoders as pure digital devices to replace the analog potentiometers. But the interiors of these rotary switches are entirely digital and use optical technology.
Features Compact 26mm design Insulation Shaft Full sealed IP55 or IP67 Multiple gear/pole Crisp Clicking Sound Vertical type ROHS Compliant
Specification

Mechanical Characteristic
Rotary Angle/Gears	300º±5ºN
Shaft Stop Strength	5.0kgf.cm min
Nut Tightening Strength	8.0kgf.cm min
Rotational Torque	400 to 800gf.cm
Shaft Push-pull Strength	8kg 10s min
Shaft play in axial	0.3mm max
Shaft play in rotational wobble	4º Max
Environmental Characteristic
Operating Temperature Range	-10°C ~ +85°C
Storage Temperature Range	-40°C ~ +85°C
Solderability	260°C±5°C for 3°C±0.5s
Durability
Rotational Life	10,000 cycles
Vibration	10-150hz 3directions for 2h each amplitude 10mm
Electrical Characteristic
Contact Resistance	100MΩ Maxmm
Voltage proof	500V AC for 1 minute
Insulation resistance	100MΩ Min. 500V DC
Timing	No Shorting

Application
Rotary Switch multi-way switch mainly used in microwave ovens, fans, multimedia audio, amplifiers, medical equipment and etc. The main functions of switching function, thermostat, timing, speed and so on.
