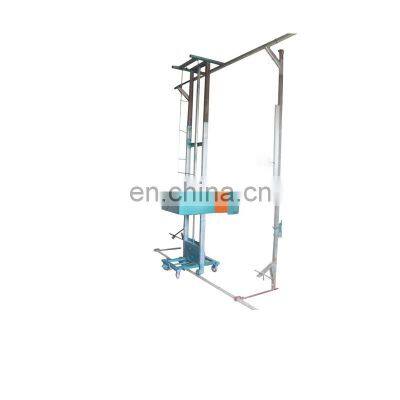

Sell Factory price automatic wall plastering machine

Product Description

Product Description
Sell Factory price automatic wall plastering machine 008615238020768
Advantages:
1, The volume is small, the weight is light , easy to move (automatic walking, automatic positioning, automatic adjustment of the plaster thickness , automatically adjust the plaster joints ) , easy to operate .
2,The unique design of the dual- rail automatic lift , automatic positioning , the main rail design height of 1.96m , host design : wide 78cm x long 80cm . Breakthrough of the biggest challenges of the whitewashed wall machine manufacturers of domestic and market can not solve so far for different floors of a high degree of automatic movements , and an effective solution across the room the construction of fills .
3,The machine is designed to squeeze plaster , plaster thickness up to 0.2 - 3cm not fall off , further strengthened the bond strength of the mortar and the wall , dense degree more than the manual more than five times , an effective solution to the artificial plaster in mortar off and hollowing phenomenon .
4,Positioning mode , our company developed a complete positioning system , combined with laser positioning ; the positioning is simple , fast , high precision . Really reached the whitewashed wall of the precedent of automation at home and abroad , to effectively guarantee the accuracy of wall roughness and verticality.
5,The professional design of automatic retractable motor adjustment control verticality and the second rail positioning to achieve the plaster , the whereabouts of the mobile location at the same time , significant savings in time and solve this problem up outside the host .
6,The unique design of the plaster thickness and the second plaster joints automatic retractable motor adjustment , the adjustment range between 2mm - 50mm , free to run , to achieve a degree of automation .
7,Yin and yang, the angle forming device is specifically designed based on years of experience in construction company's technical staff .
8,This machine equipped with operating platform, very lightweight, weighing only 20Kg.The base is provided with a universal wheel, can be very handy operation.
The main technical performance indicators.

Single-phase motor	0.65kw	Startup mode	Control button ( distribution box)
Motor speed	1440n/min	Reducer	Reduction ratio30 :1
Plastering speed	3.5m/39s	Plaster width	0.3m- 0.8m
Plastering height	0.5- 3.5m	Plaster efficiency	2.56 m2/39s
Plastering time	39s	A plastered area	2.5m2/39s
Secondary calender time	39s	Secondary pressure light area	2.5m2/39s
Flatness error	≤3mm	Vertical error	≤ 3mm
Flatness, plaster thickness , Plaster joints, adjust the motor	24v 30w	Walking speed	10m/ Minute
Vertical adjustment motor	24v 30w	Alignment guide motor	550W
Walking mot	550w	Reducer	30 :1
Lifting motor	0.65kw	Reducer	30 :1
Console shape size	30cm*50cm*80cm	Console weight	20kg
The plaster drive motor	650w	Reducer	30 :1
The main rail height	176cm	Positioning rail height	176cm

Efficiency: 80m2 / hour
Host Dimensions:78cm × 80cm × 40cm
Positioning time : 5 seconds
Plaster method: squeeze plaster
Motion way: Walks automatically
Lifting speed : 3.5m/39 seconds .
Machine weight : 80Kg
A plastering width:80cm
The main rail height: 196cm
30cm X 50cm X 80cm Console Dimensions : 30cm X 50cm X 80cm
Operating weight: 20kg
-----------------------------------------------------------------
PACKING LIST:
Main machine: 95x75x45cm 100kg
Rail : 190x70x30cm 90kg
Control cabinet: 80x50x40cm 20kg
Total volume: 1.02 cbm
------------------------------------------------------------------
Accessories list(for free):
1.Positioning rule 2.positioning aluminium alloy bar
