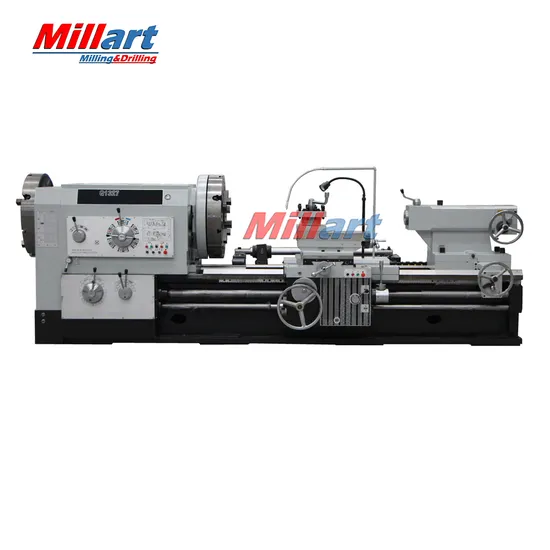

Hollow Spindle Oil Country Lathe Machine Q1327 Pipe Threading Lathe

Product Description

Hollow Spindle Oil Country Lathe Machine Q1327 Pipe Threading lathe
Features: This lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and warter pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, with worth and module threads, shafts and disks.
1. The machine is equipped with a tapering unit which can work out a ±1:4 taper.
2. It is able to cut both metric and threads without changing the translating gear.
3. The dripping worm in the apron can protect the mechanisms of the lathe automatically.
4. The guide way is hardened and finely finished.
5. The geat power of the machine is competent at heavy load and power cutting.
6. The floor center rest can be moved freely as required by the user.
7. The center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor.
8. The double 4-jaw chucks offer free clamp of both short and long pipes.
Technical parameter:

Model	Q1327
Bed width	750mm
Turning diameter over bed (max.)	1000 mm
Turning diameter over carriage (max.)	610mm
Max. diameter of pipe (manual chuck)	260 mm
Turning length (Max.)	1500mm
Spindle bore	270 mm
Spindle speed steps	12 steps
Range of spindle speed	16-380 r/min
Inch threads (T.P.I)	4~12/6
Metric threads(mm)	2~8/4
Main motor power	18.5kw
Machining length of taper scale	1000 mm
Rapid travel of tool post	6000mm/min
