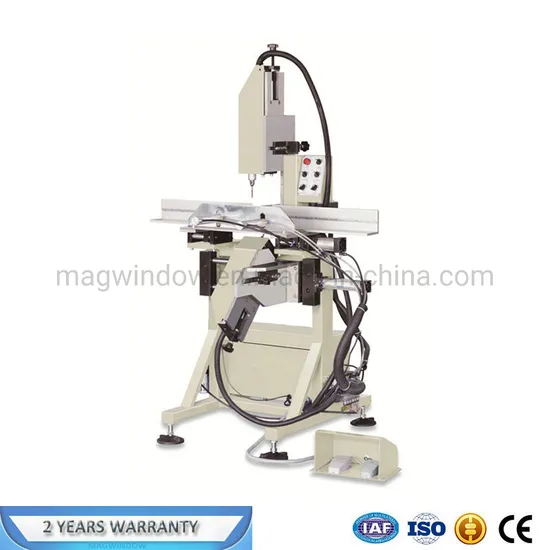

Drainage Hole Milling Machine for PVC Window Making Machine

Product Description

Water slot milling machine 3 axis Product Description
1. Three independent routing units for automatic routing and drilling of water slots and ventilation hole in PVC profile.2. Adopt advancing Germany technique.3. Compact built units' router units with automatic feed for touting depth and slot length.4. Three motors can be adjustable easily for milling different angle position.5. Router can be controlled individually to be flexible for various productions.6. The work piece is clamped by two vertical clamping cylinders.7. Automatic Pneumatic feeding unit, feeding speed adjustable.8. Easy simple measuring assist bar. 9. Sliding and turret clamp buffers allow quick adjustment.10. Auto moving working table ensure nice milling11. Easy adjustment to realize symmetrical milling.12. Optional Mode: TAWSM3 with twin machine head suitable for massive production.

Product Parameters

Air Pressure	0.5~0.8(MPa)
Input Voltage	220V 50Hz Customer specification
Input Power	1.14kW (For AWSM3). 2.28kw (For TAWSM3)
Slot Depth	30(mm)(Max)
Overall Dimension	950×1000×1800(mm)( AWSM3) 4350mm×860mm×1600mm (TAWSM3)
Air Consumption	30(L/min)
Main-shaft Revolution	25000(r/min)
Cutter Diameter	φ5 φ6 (mm) or Customer Specification
Slot Length	30~60(mm)
Weight	400(kg) (AWSM3) 1100(kg) (TAWSM3)

Detailed Photos
Standard accessory

Solenoid Valve	FESTO(Germany Brand)
Cylinder	JPC(FESTO Joint Venture Brand)
Motor	Sanyang
Air Filter Device	STNC
Electrical	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Japan Omron
