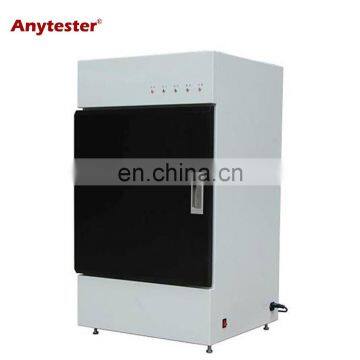

fabric drape performance tester

Product Description

Product Description
ApplicationHY0811 Fabric Drape Tester is used to measure and calculate the coefficient of drape by tracing a shadow of the draped fabric on paper.Standard BS 5058FZ/T 01045ISO 9073.9GB/T 23329BS EN 9073 Features 1. CCD imaging, static and dynamic image processing2. It is used to determine static and dynamic drape characteristics: drape coefficient, alacrity rate, curved surface waviness number (N), etc.3. Many charts and data statistics to analysis, storage and output4. With professional software to process test data 5. Can test in a variety of colors samples, no need to change background color6. Concise and efficient software interface: SpecificationModelHY0811EDrape coefficient (F)0~100%±2Alacrity rate (LP)0~100%±2Curved surface waviness number (N)0~100%±2Stiffness rate0~100%±2Rotation speed of working table3~300r/minPower supplyAC220V±10%, 50Hz, 120wDimensions 600×570×1070mmWeight 50kg
