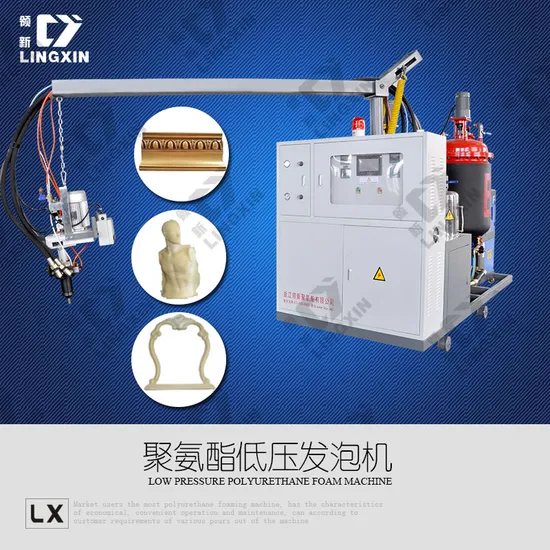

PU Machine/Polyurethane Machine/PU Foaming Machine/Polyurethane Foam Machine for Interior Decoration
| US$1,000.00-55,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LXPU
Principle
High-Speed Impeller Type
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Transport Package
Plywood Case
Specification
3000*1400*2300
Trademark
Lingxin
Origin
Mainland China
HS Code
8477409000
Production Capacity
50sets/Month
Product Description
COMPANY INTRODUCTION VIDEO LINKE: https://youtu.be/ZbQmDYK5p-EEquipment Overview:
PU foaming machines have wide application in the market, which have the features of economy and covenient operation and maintenance, etc.. The machines can be made according to customers' requirement for various flow rate.
Equipment Characteristics:
1.For sandwich type material tanks, it has good heat preservation.
2.The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating situation of machines easy to see.
3.The adoption of new type mixing head makes the mixing even, the noise low and the machine sturdy and durable.
4.The imported pumps make the measurement accurate.
Technical Parameter:
| Injection Output: | 0.9-1600g/s | Temperature control system: | heat:2×3Kw |
| Material tank volume: | 30L-120L | Input power: | three-phase five-wire 380V 50HZ |
| Mixing ratio range: | 100:50~150 for rigid foam making 100: 28~ 48 for flexible foam making | Rated power: | 8KW-12KW |
| Dimension | Micro-scale:1000(L)*1750(W)*1800(H)mm Normal:4100(L)*1250(W)*2300(H)mm | ||
| Mixing head: | 2800-5000rpm, forced dynamic mixing | Color( customizable): | Cream-colored/orange/deep sea blue |
| Compressed air needed: | dry, oil free, P:0.6-0.8MPa Q:600NL/min(customer-owned) | Weight: | 600Kg-1200Kg |
| Nitrogen requirement: | P:0.05MPa Q:600NL/min(customer-owned) | Raw material viscosity(22ºC): | POL ~3000CPS ISO ~1000MPas |
