China Manufacturer of Strong Quality 75L Rubber Kneader Banbury Mixer with Lower Price
| US$18,000.00 | 1 Set (MOQ) |
Basic Info.
Power Source
Electric
Power
110kw
Place of Origin
Shandong, China
Warranty of Core Components
1 Year
Video Outgoing-Inspection
Provided
Core Components
PLC, Motor
Weight
10000kg
Origin
Shandong
Product Description

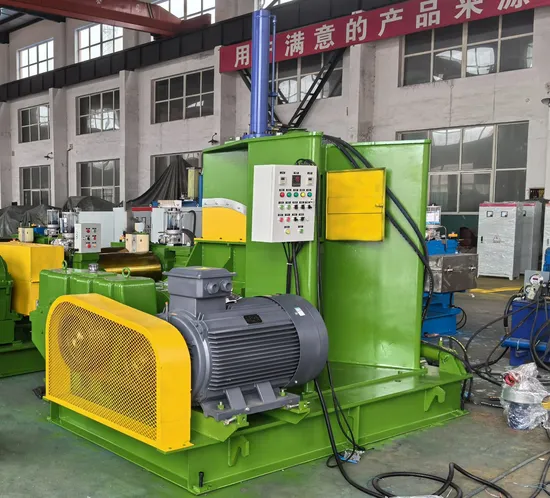

China Manufacturer of Strong Quality 75L Rubber Kneader Banbury Mixer with Lower Price Product Description This Rubber Dispersion Kneader (banbury mixer) is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials. They are also suitable for mixing a variety of low viscosity materials.Detailed Photos
Product Parameters
| Model | 3L / 5L | X(S)N-20×34 | X(S)N-35×30 | X(S)N-55×30 | |
| Total volume of mixing chamber | L | 8 / 15 | 45 | 75 | 125 |
| Working volume of mixing chamber | L | 3 / 5 | 20 | 35 | 55 |
| Main motor power | KW | 5.5 / 7.5 | 30 | 55 | 75 |
| Tilting motor power | KW | 0.55 / 0.75 | 3.0 | 4.0 | 4.0 |
| Tilting angle | ° | 110-135 | 140 | 140 | 140 |
| Rotation speed of rotor(front/rear) | r/min | 0-42 | 34/28 | 30/24.5 | 30/24.5 |
| Pressure of compressed air | Mpa | 0.5~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Pressure of cooling water(rubber mixing) | Mpa | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 |
| Pressure of heating vapor(plastic mixing) | Mpa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
| Overall size | mm | 3100×1300×2450 | 3200×1900×2945 | 3300×1900×2900 |
| Model | X(S)N-75×30 | X(S)N-110×30 | X(S)N-150×30 | X(S)N-200×30 | |
| Total volume of mixing chamber | L | 175 | 250 | 325 | 440 |
| Working volume of mixing chamber | L | 75 | 110 | 150 | 200 |
| Main motor power | KW | 110 | 185 | 220 | 280 |
| Tilting motor power | KW | 4.0 | 5.5 | 11 | 11 |
| Tilting angle | ° | 140 | 140 | 140 | 140 |
| Rotation speed of rotor(front/rear) | r/min | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of compressed air | Mpa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Pressure of cooling water(rubber mixing) | Mpa | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 |
| Pressure of heating vapor(plastic mixing) | Mpa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
| Overall size | mm | 3760×2143×3135 | 4075×2712×3580 | 4200×3400×3900 | 4250×3400×4215 |
