Trough Type Mixing Machine Mixing Machine Price Dough Trough Type Mixer Dough Mixing
Basic Info.
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Granules, Food & Beverage Factory, Farms, Restaurant, Food S
Application Area
Pharmaceutical
Certification
CE, ISO, CE CCC CQC ISO
Condition
New
Heating Method
Electricity
Stirring Type
Forced
Working
Shear Mixer
Material
SUS304, SUS304L, SUS316, SUS316L
Key Selling Points
Long Service Life
Core Components
Motor, Gear, Pressure Vessel, Pump, PLC, Bearing
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
After Warranty Service
Video Technical Support, Online Support, Spare PAR
Key Selling Points1
Easy to Operate
Range of Spindle Speed(r.p.m)
20 - 24 r.p.m
Voltage
220V/380V Customized
Application1
Liquid with Suspended Solids
Product Type
Mixer, Shape Powder Mixer
Dimension(L*W*H)
Custom Made
Barrel Volume (L)
10-4000
Mixer Type
Horizontal Ploughshare Mixer
Layout Type
Horizontal
Mixing Drum Shape
Circular Groove
Operating type
Continuous Operating
Warranty
12 Month
Transport Package
Standard Export Plywood Wooden Case
Specification
BD-CH-10-P
Trademark
BIOGREEN
Origin
Jiangsu, China
Production Capacity
1000 PCS/Month
Product Description
Description

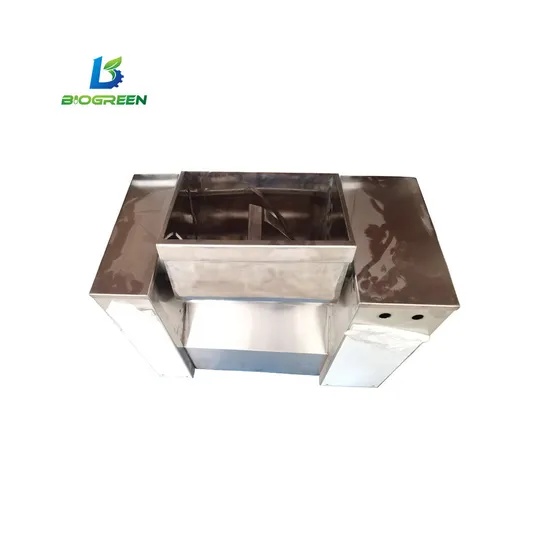

CH Series Trough-type Mixer
is used for mixing dry powder in many industries such as pharmaceutical industry, foodstuff industry chemical
industry, electronics industry and so on. Particularly it is suitable for mixing raw materials that have high
requirement in uniform and high difference in specific gravity. Its features are compact, simple in operation,
beauty in appearance, convenient in clean, good effect in mixing and so on.
| Model | Volume (L) | Motor power (kw) | Speed of stirring (rpm) | Inclined angle (°) | Overall dimensions (mm) | Weight (kg) |
| CH-50 | 50 | 1.5 | 24 | 105 | 1200*500*950 | 320 |
| CH-100 | 100 | 2.2 | 24 | 105 | 1400*580*1000 | 350 |
| CH-150 | 150 | 3 | 24 | 105 | 2000*630*1150 | 410 |
| CH-200 | 200 | 4 | 24 | 105 | 2300*750*1350 | 450 |
| CH-300 | 300 | 5.5 | 24 | 105 | 2700*850*1500 | 520 |
| CH-500 | 500 | 11 | 24 | 105 | 2500*900*1600 | 700 |
| CH-600 | 600 | 11 | 24 | 105 | 2600*950*1700 | 800 |
1. This machine uses two motors, a stirring motor, which drives the mixing paddle to rotate the mixture
material through the shaft. A discharge motor can be used to tilt the stirring tank to facilitate unloading.
2. There are one-way thrust ball bearings and radial thrust ball bearings at both ends of the stirring
shaft to prevent radial turbulence caused by negative stress.
3. The sealing at both ends of the mixing shaft has been improved, and it can be completely sealed
without contaminant material.
4. When jogging is used, it is easy to discharge, and it will not cause the phenomenon that the hopper
tilts too much. The left end of the machine rotates. Because the worm wheel and the worm drive have
self-locking effect, the mixing box can be dumped at any angle. .
5. Add the raw material to the cylinder at one time, dry it for a period of time, add the adhesive or spray
the liquid, or add the raw material and the adhesive to the working container at one time, and mix it into
the ideal soft material.
