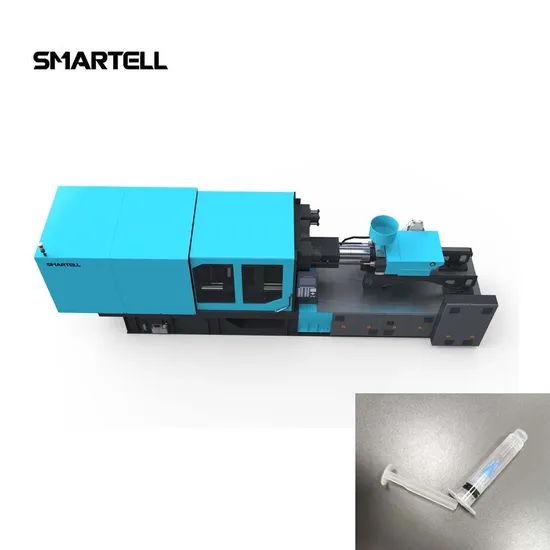

1200kN Injection Molding Machine for Disposable Medical Production Line
Basic Info.
Model NO.
NT120
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Marketing Type
Hot Product
Core Components
Motor, PLC
Material
Stainless Steel
Applicable Industry
Manufacturing Plant
Voltage
380V/ 50Hz 3p+N+E (Alterable)
Function
Plastic Parts Production
Mold
Can Be Customizabled
Clamp Force
1200kN
Space Between Tie Bars
420mmx380mm
Specification
4.6m*1.3m*2.1m
Trademark
SMARTELL
Origin
China
Product Description
| Part | Name | Unit | NT120 | ||
| Injection unit | SCREW DIAMETER | mm | 38 | 42 | 45 |
| SCREW L/D RATIO | L/D | 22 | 20 | 18.5 | |
| INJECTION STROKE | mm | 170 | 170 | 170 | |
| NJECTION SPEED | Mm/sec | 90 | 90 | 90 | |
| SHOT VOLUME(THEORETICAL) | CM3 | 193 | 235 | 270 | |
| INJECTION WEIGHT(PS) | g | 175 | 213 | 245 | |
| INJECTION PRESSURE | Mpa | 177 | 145 | 126 | |
| INJECTION RATE | cm³/sec | 102 | 124 | 143 | |
| SCREW SPEED | rpm | 190 | |||
| clamping unit | CLAMP FORCE | Kn | 1200 | ||
| OPEN STROKE | mm | 360 | |||
| SPACE BETWEEN TIE BARS | mm×mm | 420X380 | |||
| MAX.MOULD HEIGHT | mm | 430 | |||
| MIN.MOULD HEIGHT | mm | 150 | |||
| EJECTOR STROKE | mm | 107 | |||
| EJECTOR FORCE | Kn | 40 | |||
| EJECTOR NUMBER | N | 5 | |||
| others | MAX.PUMP PRESSURE | Mpa | 16 | ||
| SEVRO DRIVE POWER | Kw | 15 | |||
| HEATING POWER | Kw | 7.5 | |||
| MACHINE DIMENSION(L*W*H) | m×m×m | 4.6*1.3*2.1 | |||
| MACHINE WEIGHT(ESTIMATE) | T | 3.5 | |||
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
