2025 Rubber Oil Seal Gasket Cutting Machine

Product Description

2025 Rubber Oil Seal Gasket Cutting Machine
Model: Single shaft
Product Introduction
Rubber Oil Seal Gasket Cutting Machine with Servo motor control, high efficiency and stability, high cutting precision. it is used for cutting all kinds of rubber and silicone rubber tubular products to gaskets.
Technical parameters
Double shaft rubber ring cutting machine :

Cutting frequency	>50pcs/min
Working speed	0~2000r/min
cutting precision	≤±0.05mm
Cutting outside diameter	Φ10mm~Φ120mm
Cutting length	≤200mm
Cutting thickness	≤12mm
Compressed air consumption	50L/min
Air pressure	0.5MPa~0.8MPa
vacuum degree of work	≤-0.035MPa
Total power	750W
weight	≈500Kg
dimension(L×W×H)	1600mm×960mm×1580mm

Products Features
1.The product after cutting is the finished product directly, the appearance is beautiful without flying edge, do not need to be trimmed twice.
2.The program is controlled by Chinese and English interface, users can switch at will, input parameters can work automatically.
3.Servo motor control, high efficiency and stability, high cutting precision.
4.With automatic water circulation system to protect the cutter.
5.Automatic unloading after cutting, saving time and effort.

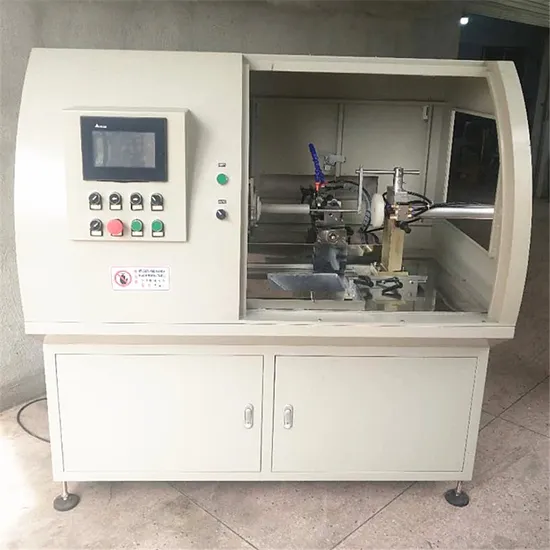

Product display
Accurate cutting, error up to 0.04mm:
Package & Delivery:
Our products will be packed with transparent film and soft foam, then be packed with strong and standard export wooden case.
Shipping method:
1. We can ship the goods to you by Air, Sea and International Express such as DHL,UPS,TNT,EMS and so on.
2. You can also choose the appropriate one based on your timeline and budget.
3. You can choose to use your own shipping agent.
We offer below business term:

Accepted delivery terms	FOB, CFR, CIF, EXW
Accepted payment currency	USD, EUR,CNY
Accepted payment type	T/T, L/C
Nearest port	Qingdao, Shanghai, Dalian, Tianjin,Ningbo etc.

A. Technical service
1. We calculate the capacity and recommend the best models.
2. We supply the spare parts and technical support in & after the warranty time.
3. We supply the training course to your workers at our factory if you need.
B. After-sales service
1. Technical support for your installation, operation and maintenance.
2. One year's warranty
3. Spare parts and technical support at most economic prices after the warranty.
