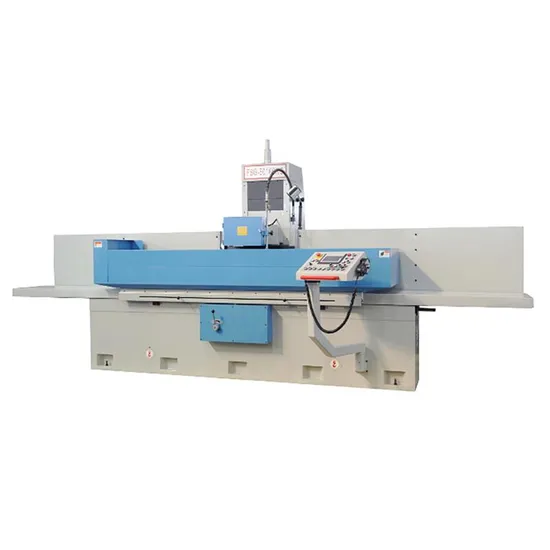

50 Series Column Mobile Program-Controlled Surface Grinding Machine
| US$5,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
50 Series-wx
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year
Product Description
Product Parameters
| Specifications | ||||
| Item | Unit | FSG50100NC | FSG50160NC | FSG50450NC |
| Table size W*L | mm | 500*1000 | 500*1600 | 500*4500 |
| Max.grinding size | mm | 500*1000 | 500*1600 | 500*4500 |
| Max.distance from table to spindle center | mm | 600 | 600 | 600 |
| Magnetic chuck size(optional equipment) | mm | 500*1000*1 | 500*800*2 | 500*1000*4 |
| Speed of table longitudinal move | m/min | 5~25 | 5~25 | 5~25 |
| Wheel head cross move | ||||
| Auto intermittent feed | mm/t | 0~30 | 0~30 | 0~30 |
| Rapid speed | mm/min | 0~1500 | 0~1500 | 0~1500 |
| Feed of MPG | mm/div | 0.005 | 0.005 | 0.005 |
| Vertical motion | ||||
| Rapid down speed | mm/t | 0.005,0.01,0.02,0.03,0.04 | 0.005,0.01,0.02,0.03,0.04 | 0.005,0.01,0.02,0.03,0.04 |
| Rapid speed | mm/min | 0~300 | 0~300 | 0~300 |
| Feed of MPG | mm/div | 0.005 | 0.005 | 0.005 |
| Grind wheel size | mm | 350*40*127 | 350*40*127 | 350*40*127 |
| Spindle motor power | kw | 7.5 | 7.5 | 11 |
| Packing size | cm | 399*225*250 | 564*225*250 | 1150*238*250 |
| Gross weight | kg | 5500 | 6000 | 14500 |
