High Efficiency Commercial Open End Cotton Yarn Rotor Spinning Machine

Product Description

Product Description
MODEL HJF1603 ROTOR SPINNING FRAME
Based on referring advance technology of other domestic Rotor spinning frame, HJF1603 rotor spinning frame is a sort of high speed, efficient, large package and self-exhausting open-end
spinning frame.
Product Parameters
Main Technical Data:

Gauge		200
Number of units		192-360
Rotor speed(rpm)		30000-75000
Rotor dia.		43,54, 66
Combing roller speed(rpm)		5200, 6200,6700, 7200,7700, 8200
Drafting ratio		35-230.5
Sliver count		0.2-0.45nm(5000-2200tex)
Take-up speed(m/min)		20-116.7
Can diamension		250*900, 300*900, 350*900
Tube dimension		68*62*170(3°30´ taper tube) 56*50*170(cylinder tube)
Package weight		Approx 4(cylinder tube)
Motor Power(KW)	Rotor driving	2*11
	Combing rolling driving	2*4.5
	Fan for thrid hand	1*3
	Fan for impurity discharge	1*4
	Conveyer belt driving	1*1.04(with reducer)
	Gear box driving	2*1.5(drawing)+ 2*0.75(feeding)

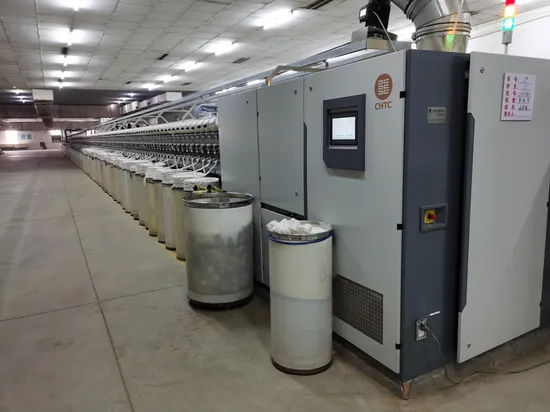

Detailed Photos

Product processing

Product Application
Certifications

Packaging & Shipping
Company Profile
FAQ:

Q: Why Choose Our Company?
Jingtian Textile Machinery Co., Ltd. (founded in 1991) is a key backbone production enterprise in China's textile machinery manufacturing industry. It has a long history and experience in independent development and production of textile machinery products. It has a first-class R & D center and scientific and technological development team. It is an enterprise that has passed ISO9001 quality system certification earlier in the industry. At present, the company has 20 subsidiary companies with nearly 300 employees. Diversified products, standardized corporate governance structure and flexible business mechanism have injected new vitality into the development of the company.
Q: How's the after-sale service? We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount. Q: How about the quality?
We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
Q: Product /Quality Guarantee and After Sale Service?
1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
Q: One-stop Service:
We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
Q: Certification?
JingTian is an ISO9001, ISO14001 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. JINGTIAN will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
