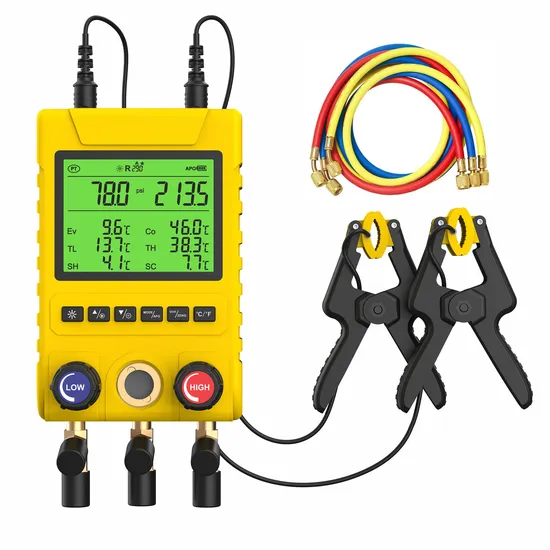

Amt100 Digital 2-Way Valve HVAC and Refrigeration Manifold Gauges

Product Description

AMT100 Digital 2-Way Valve HVAC and Refrigeration Manifold Gauges
Order Number:
AMT100A: Digital manifold No temperature clamps
AMT100: Digital manifold with 2 temperature clamps
AMT100B: Digital manifold with 2 temperature clamps and refrigerant hose
Features:
1. Extra large LCD screen
2. Integral protection design
3. Quick search for common refrigerants
4. A2L Flammable Refrigerant Warning Reminder
5. Overload capacity of 2x range (10Mpa)
6. Key function design for zero-order menu
7. Pressure-holding leak test function with precise
8. Temperature compensation
9. APO function, automatically recognizes that the device is in an idle state and actively turns off the power to save energy
10. Temperature and pressure measurement; Holding Pressure Leakage Test; Vacuum measurement
Specifications:
1. Pressure measurement range: -14.5~500psi/ -14.5~800psi
2. Pressure display resolution: 0.5psi
3. Pressure measurement accuracy: ±0.5%FS
4. Pressure Unit: psi , bar, kg/cm2, inHg, kPa, MPa
5. Temperature measurement range: -50°C~150°C
6. Temperature display resolution: 0.1°C
7. Temperature measurement accuracy: ±0.5°C
8. Temperature Unit: °C/°F
9. Operating temperature and humidity: -10~50°C, 35%~ 85% RH
10. Battery life: 6 months
11. Battery: 3 x AAA
12. 2 channels: Red, blue
13. Maximum working pressure: 800psi
14. Refrigerant: 88 types
