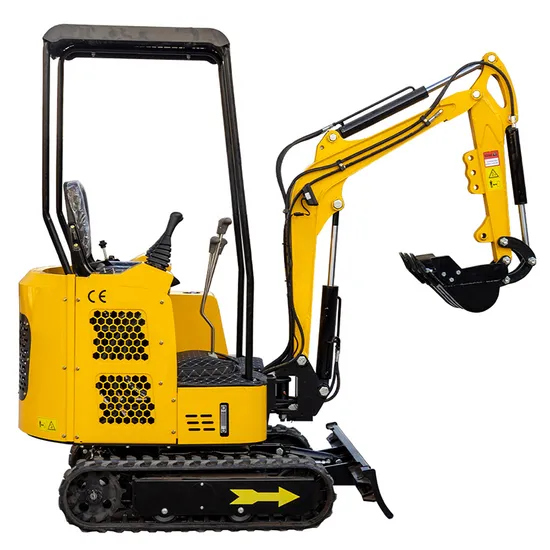

CE EPA Approved Trustworthy Quality 1.5 Ton China Mini Digger Micro Excavator
| US$6,500.00-8,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
15
Usage
Special Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
>1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Rated Speed
3.5 Km/H
Maximum Digging Height
2610 mm
Maximum Digging Depth
1850 mm
Max Digging Radius
2850 mm
MOQ
One Unit
Application
Construction Digging
Engine Brand
Koop
Power
14kw/3000r/Min
Machine Weight
1500kg
Transport Package
Packed in Wooden Case
Specification
2550 * 940 * 1380mm(L*W*H)
Trademark
MDL
Origin
China
Production Capacity
50 Set/Sets Per Month
Product Description
1.5 ton Excavator (15)
Product Parameters
| |
| Performance Parameter | |
| Weight | 1500 kg |
| Digging bucket capacity | 0.025 cbm/120kg |
| Bucket width | 380 mm |
| Engine | KOOP |
| Bore stroke | double cylinder, Air cool |
| Rated power | 14 kw/3000r/min |
| Displacement | 0.794 L |
| Travel speed | 3.5km/h |
| Main Demensions | |
| Overall dimension ( L * W * H) | 2550 * 940 * 1380 mm |
| Wheelbase | 770mm |
| Total length of track | 1090mm |
| Platform ground clearance | 380 mm |
| Platform back turning radius | 733 mm |
| Chassis width | 940 mm |
| Track width | 180 mm |
| Chassis ground clearance | 380 mm |
| Track height | 320 mm |
| Operating Range | |
| Max. Digging depth | 1650 mm |
| Max. Vertical digging depth | 1800 mm |
| Max. Digging height | 2610 mm |
| Max. Dumping height | 1850 mm |
| Max. Digging radius on ground | 2850 mm |
| Min. Rotation radius | 1330 mm |
| Max. Upgrade height of bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
Product Description
Detailed Photos
Company Profile
Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!
