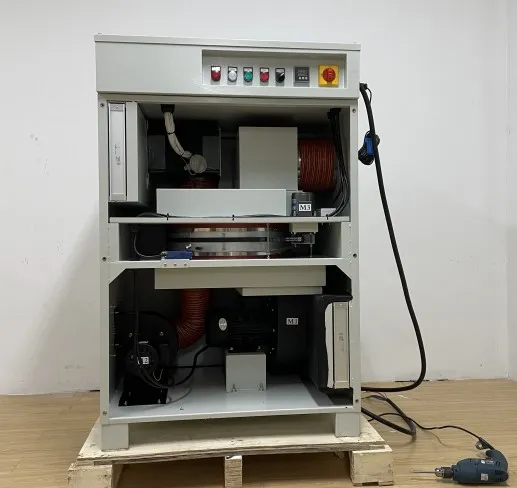

Granular Zeolite Large Desiccant Rotary Air Dehumidifier

Product Description

Model		KCDD-10	KCDD-12	KCDD-15
Dehumidify Capacity(20°C,60%)		10kg/hr	12kg/hr	15kg/hr
Power supply		3N 220V/60HZ	3N 460V/60HZ	3N 460V/60HZ
Process air flow		1550	2000	2500
Inlet size mm		250	246*230/Φ350	448*222/Φ350
Reactivation air flow		580	660	800
Outlet size mm		160	200	200
Applied Temperature		-20°C~60°C	-20°C~60°C	-20°C~60°C
Regeneration energy consumption	Steam KG/H	25	35	45
	0.4Mpa	DN20	DN20	DN20
	ELec.	15	18	22
Max power	Steam	1.6	1.9	2.6
	ELec. KW	15	20	24
Power rating		14	18	22
Current		49	29	36
Application Area		300-400	380-500	460-610
Dimension		950*700*1300	1300*840*1300	1330*870*1300
Packing size		950*750*1360	1360*900*1360	1380*920*1410
Net weight		185kg	250kg	280kg
Gross weight		205	275	310
Primary Filter		G4 efficiency
Desiccant Rotor Brand		Sweden Proflute

Due to the solidity desiccant wheel, this equipment can be used to dry the air under atmospheric pressure. It can continue working right down to -20°C, up to 50°C.
The dehumidification equipment is suitable for:
• Places full of corrosive gas
• HVAC system
• Humidity of less than 35%RH
• Low dew point conditions
• Low temperatures, especially combined with low humidity
• Single pass air flow applications
• Pharmaceutical production, packaging, storage, testing and research
• Process air systems
• Photographic/film archive stores
• Pneumatic conveying of powders
• Pumping stations
• Confectionary production and packing
• Food production
• Clean rooms
• Electronic manufacture
• Cold stores
• Seed storage
• Drying & corrosion prevention inside power station turbines
• Injection moulding machines
• Tank drying ...
