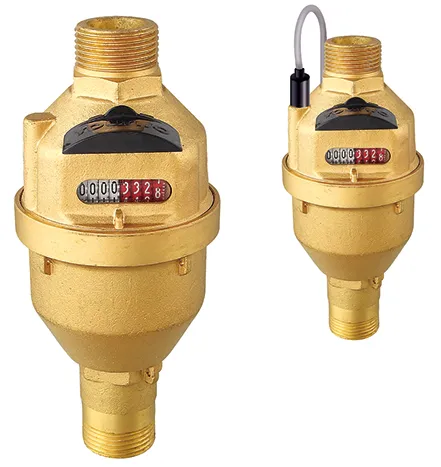

Medidor De Agua Volumetric Water Meter
| Negotiable | 3,000 Pieces (MOQ) |
Basic Info.
Model NO.
LXH-15~20
Install
Vertical
Medium Temperature
Class C or D
Level Measurement
Class C or D
Counter Instructions
Digital
Nominal Diameter
15-50mm
Application
Civil, Industrial
Principle
Volumetric Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Stucture
Traditional
Type
Volumetric
Dial
Liquid Sealed
Material
Brass
Size
DN15~DN40
Transport Package
Carton/ Pallets
Specification
ISO4064
Trademark
YOUNIO or OEM
Origin
China
HS Code
902820100
Production Capacity
50000/Month
Product Description
AplicacionEI principio de medicion es de desplazamiento positivo por disco nutante colocado en una camara.
EI volumen de agua que pasa a traves del medidor es contabilizado en base al numero de ciclos.
Cada ciclo del disco nutante conduce un volumen fijo de agua. Medicion precisa en amplio rango de caudales.;
Equipado con estrella giratoria sensible a caudales minimos que permite detectar fugas por minimas que sean. Working condition: Water temperature≤30ºC
Water pressure≤1MPa, (PN:1.6MPa/16bar)
ΔP≤0.1MPa (ClassC)
ΔP≤0.063MPa (R160) Accuracy: From minimum flow-rate(Q1) inclusive, to transitional flow -rate(Q2) exclusive:±5%
From transitional flow- rate(Q2) inclusive, to overload flow -rate(Q4) exclusive:±2% Dimension:
| Type | Size (mm) | Length (mm) L | Width (mm) w | Height (mm) H | Connecting Thread D |
| LXH-15 | 15 | 115 | 90 | / | G3/4"B |
| LXH-20 | 20 | 165 | 90 | / | G1"B |
| LXH-25 | 25 | 200 | 106 | / | G11/4"B |
| LXH-40 | 40 | 227 | 152 | / | G2"B |
| LXH-15E | 15 | 165 | 96 | 115 | G3/4"B |
| Model Number | LXH-15 | LXH-20 | LXH-25 | LXH-40 |
| Nominal diameter (DN)[mm]: | 15 | 20 | 25 | 40 |
| Ratio Q3/Q1: | 160 | 160 | 160 | 160 |
| Overload flow rate (Q4) [m³/h] | 3.125 | 5 | 7.875 | 20 |
| Permanent flow rate (Q3) [m³/h] | 2.5 | 4 | 6.3 | 16 |
| Transitional flow rate (Q2) [m³/h] | 0.025 | 0.04 | 0.063 | 0.16 |
| Minimum flow rate (Q1) [m³/h] | 0.025 | 0.025 | 0.039375 | 0.1 |
| Accuracy class: | 2 | |||
| Maximum permissible error for the lower flow rate zone (MPEι): | ±5% | |||
| Maximum permissible error for the upper flow rate zone (MPEμ): | ±2% for water having a temperature ≤30ºC | |||
| Temperature class: | T30 | |||
| Water pressure classes: | MAP 16 | |||
| Pressure-loss classes: | △P63 | |||
| Indicating range[m3]: | 9999 | |||
| Resolution of the indicating device[m3]: | 0.001 | |||
| Flow profile sensitivity classes: | U0 D0 | |||
| Orientation limitation: | H/V | |||
| Length L[mm]: | 115 | 165 | 200 | 227 |
| Connection type-Screw thread size: | G3/4" | G1"B | G11/4"B | G1"B |
