High Quality Texturized Class Fiber Yarn

Product Description

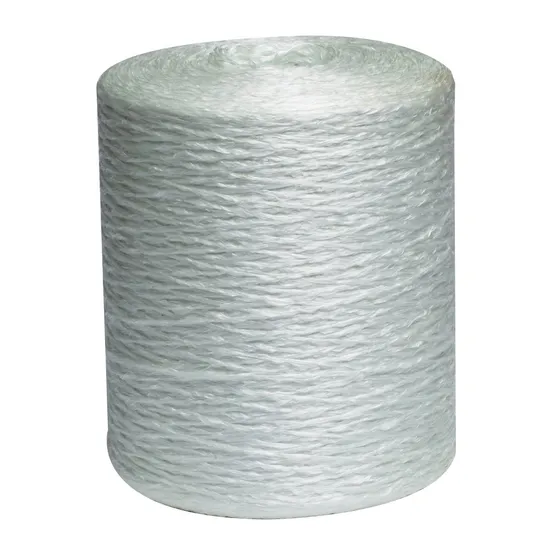

C-glass high strength fiberglass roving yarn Specifications:

Style	Linear Density (Tex)	Filament Diameter (um)	Moisture Content (%)	Size Content (%)	Breaking Strength (N|Tex)	Roll weight (Kg)	Compatible resin	Application process
EC14-200	200	14	≤0.10	0.55±0.15	≥0.35	16	UP|VE|EP	Weaving|Knitting
EC14-500	500	14	≤0.10	0.55±0.15	≥0.35	17	UP|VE|EP	Weaving|Knitting
EC14-600	600	14	≤0.10	0.55±0.15	≥0.35	17	UP|VE|EP	Weaving|Knitting
EC14-1200	1200	14	≤0.10	0.55±0.15	≥0.35	17	UP|VE|EP	Weaving|Knitting
EC17-1200	1200	17	≤0.10	0.55±0.15	≥0.35	17	UP|VE|EP	Winding|Pultrusion
EC17-2400	2400	17	≤0.10	0.55±0.15	≥0.35	16|22	UP|VE|EP	Winding|Pultrusion
EC24-2400	2400	24	≤0.10	0.55±0.15	≥0.35	16|22	UP|VE|EP	Winding|Pultrusion
EC24-4800	4800	24	≤0.10	0.55±0.15	≥0.35	16|22	UP|VE|EP	Winding|Pultrusion
CC14-200	200	14	≤3.00	0.55±0.15	≥0.30	6.0	UP	Weaving|Knitting
CC14-500	500	14	≤3.00	0.55±0.15	≥0.30	17	UP	Weaving|Knitting
CC14-600	600	14	≤3.00	0.55±0.15	≥0.30	17	UP	Weaving|Knitting
CC14-1200	1200	14	≤0.20	0.55±0.15	≥0.30	17	UP	Weaving|Knitting
CC17-1200	1200	17	≤0.20	0.55±0.15	≥0.30	20	UP	Winding|Pultrusion
CC17-2400	2400	17	≤0.20	0.55±0.15	≥0.30	20	UP	Winding|Pultrusion
CC24-2400	2400	24	≤0.20	0.55±0.15	≥0.30	20	UP	Winding|Pultrusion
CC24-4800	4800	24	≤0.20	0.55±0.15	≥0.30	20	UP	Winding|Pultrusion
CC24-7200	7200	24	≤0.20	0.55±0.15	≥0.30	20	UP	Winding|Pultrusion

Data only for reference, can be customized by clients requst Product feature Fiber linear density is stable, small deviations for tex. Less electrostatic accumulation, low fuzz. The fiber moderate stiffness, excellent dispensability. Good integrity with the concrete, good alkali resistance. Application Used to produce pipes of various diameters, storage tanks and tubes which are widely used in transportation, aerospace, electrical markets Storage Unless otherwise specified, fiberglass products should be stored in a dry, cool and moistureproof area. Room temperature and humidity should always be maintained at 15°C - 35°C, 35% - 65% respectively. Best used within 12 months after production date. Fiberglass products should remain in their original packaging until just prior to use. Package Each spray up roving roll covering by shrinkage membrane or drawing membrane, then placed into cardboard box or set on pallet.Each pallet can stack 48 or 64 rolls . each roll weight is 15~18kg. It is can increasing roll weight according to customer requirements. Pallet stack shall no be higher than 2 layers, cardboard box shall no be higher than 5 layers
