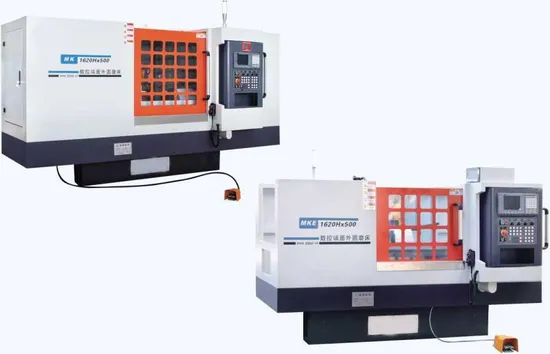

Mk1620h Mkz1620h Mke1620h CNC Transverse Cylindrical Grinding Machine
| US$50,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MK1620H MKZ1620H MKE1620H
Abrasives
Abrasive Belt
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Center Height
135
Machine Weight
2800
Dia to Be Ground
φ8~φ200
External Wheel Size
φ500×50×φ203
Transport Package
Woodencase
Origin
China
Production Capacity
1000pic/Year
Product Description
Product DescriptionMain functions and features
• This machine is mainly used for grinding the face and cylindrical shaft parts, simple structure, easy to operate, with high cost performance.
• All plastic coated guide rail enhance its vibration resistance and sensitivity.
• Grinding wheel spindle bearing is used by either of dynamic and static pressure.
• Using bevel grinding head oblique into the type of grinding wheel frame structure.
• C3-level precision screw used in all imported screw.
• The machine can be equipped with radial and axial measurement instrument according to the user.
Product Parameters
| Description | unit | MK1620H×500 MKE1620H×500 | MK1620H×750 MKE1620H×750 | MKZ1620H×500 | MKZ1620H×750 |
Dia to be ground | mm | φ8~φ200 | φ8- φ200 | φ8-200 | φ8- φ200 |
Max.length to be guound | mm | 500 | 750 | 500 | 750 |
Center height | mm | 135 | 135 | 135 | 135 |
Max.workpiece weight | kg | 50 | 50 | 50 | 50 |
Wheel peripheral velocity | m/sec | 45 | 45 | 45 | 45 |
Distance between centers | mm | 500 | 750 | 500 | 750 |
Swinel range of worktable | -3~+7 | -3~+5 | -3~+7° | -3~+5° | |
External wheel size | mm | φ500×50×φ203 | φ500×50xφ203 | φ500×50xφ203 | φ500×50×φ203 |
Workhead and tailstock center | morse | N0.4 | N0.4 | N0.4 | N0.4 |
| (××) Overall dimensions(LxWxH) | mm | 2700×1600×1500 | 3200×1600×1500 | 2840×1930×1760 | 3340×1930×1760 |
Machine weight | kg | 2800 | 3300 | 3000 | 3500 |
Total motor power | kw | 12 | 12 | 12 | 12 |
Longitudinal servo motor Traverse servo motor | (kw) (kw) | 2.4(11.5Nm) 2.4(11.5Nm) | 2.4(11.5Nm) 2.4(11.5Nm) | 2.4(11.5Nm) 2.4(11.5Nm) | 2.4(11.5Nm) 2.4(11.5Nm) |
