1 / 4 up to 4 Inch Hydraulic Hose Crimping Machine

Product Description

Composite hose/rubber hose/PTFE hose crimping machine
1. Machine description
Our crimping machines can be used for composite hoses, rubber/hydraulic hoses and PTFE hoses etc... Our machines are equipped with PLC touch screen(Siemens), foot switch and quick-assembly toolings. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device. This machine features are as below:
* High accuracy
* Low noise
* Easy operate with PLC and touch screen
2. Machine details
A. Single head hose crimping machine
Power:380V
Production capacity:1200pcs/h
Working oil pressure:15Mpa/customizable
Application:braided hose,high pressure tubes,gas,hoses,etc
Diameter:up tp 20mm, can be customized
Number of teeth:12 feet or 8 feet/customizable

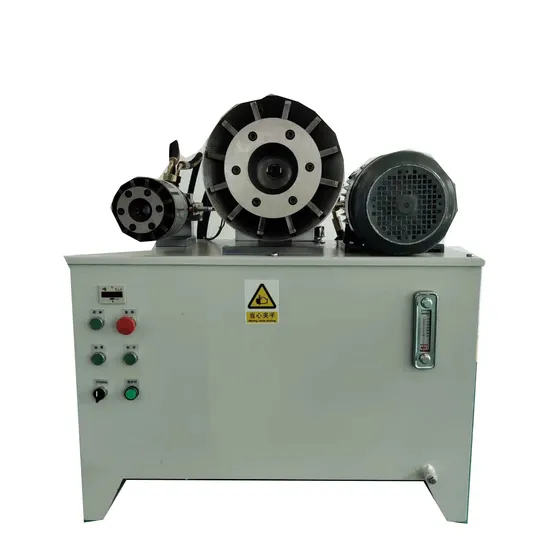

B. Double head hose crimping machine
Power:380V
Production capacity:2000pcs/h
Working oil pressure:15Mpa/customizable
Application:braided hose,high pressure tubes,gas,hoses,etc
Diameter:up tp 20mm, can be customized
Number of teeth:12 feet or 8 feet/customizable
Specification

Crimping range	84mm-410mm
Max. Opening with die set	500mm
Max. Opening without die set:	590mm
Max. Crimping length:	285mm
Max. crimping force:	1000Tons
Operation type	Manual, automatic and foot switch(foot switch should connect to both manual and auto and should be controlled by a rotary switch
Control type	12'' movable industrial digital display, and micrometer caliper
Max. oil pressure	28Mpa
Motor power	22KW
Estimated Dimension	(L*W*H): 1850*1850*3080mm
Other supporting device	Hydraulic power unit; holding pressure control; return control; water cooling device

Related machine
Mechnical metal hose forming machine
Size range: DN8 up to DN40
Wallthickness: 0.18-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm Material: sus304, 321 and 316L
Dimension:L*W*H20000*1200*1600MM,
Weight:3000KGS Power:5KW,
Milled length:About 20mets/roll Including:
A. Strip decoiler/winder B. Pipe welding C. Cutting machine D. Caterpiller E. Forming head/reforming head F. Take up
Hydraulic hose cutting machine
Suitable for automatic cutting of conventional PVC, rubber, nylon wire hoses, etc., with cold-cut and hot-melt functions.
Technical parameters:
Power:220v
Production capacity:37cm,
30000pcs/8h Cutting
length: up to 99.99m/Customizable
Application:steel pipes, nylon tubes,etc
Size range:up to 16mm/customizable Motor speed:2800rmp
Hose assembly machine
Customizable Hose assembly production line. Hose fitting assembly,crimping and testing.
Technical parameters:
Power:380V
Production capacity:900pcs/h
Working air pressure:0.4-0.6Mpa
Working oil pressure:10Mpa Assembly
length:2m/customizable
Precision of crimping and test:9.33mm-9.73mm
Air Leakage Testing Hose Machine
Used for gas tightness testing of pipe fittings and other products with cavities.
Two Testing Ways:
1. Differential pressure sensor version
2. Submerged Beta
Four test stations, which can be customized.
Details
Die sets and quick-assembly toolings
PLC controllers and micrometer
4. Our company
We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines,such as hose forming machine, hydro forming machine, wire braiding machine, rewinding machine, bellow forming machine, crimping machines etc.. We are lead manufacturer of flex-related products in China. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.
5. RFQ
Q: Why choose us?
A: We are most professional manufacturer with more than 25 years of experience.
Q: What size can you make?
A: All the sizes from 1/4'' up to 12'' can be made on different machines.
Q: What is the application for the crimping machine?
A: Composite hoses, rubber hoses, hydraulic hoses, PTFE hoses etc...

We need to know following information to quote you correct machineries:
1. Size range you want to crimp
2. The application of the hose
3. Wall thickness of the hoses
4. Information of the fittings
