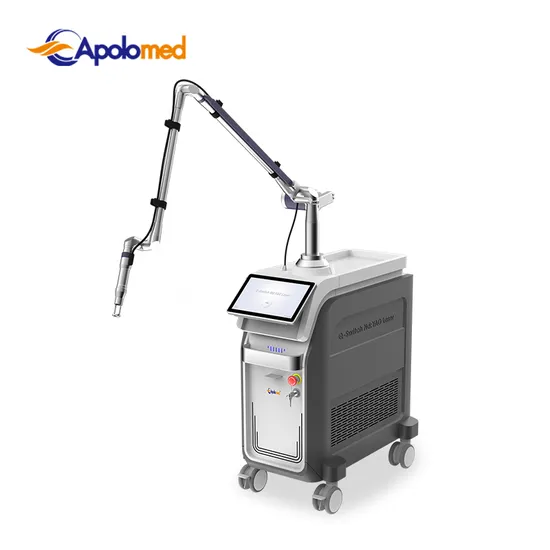

Q-Switched ND YAG Equipment Q-Switched Laser System Machine ND YAG Laser Tattoo Removal Machine
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
HS-290B
Application
for Commercial
Portable
Non Portable
Certificate
CE0197, ISO13485
Wavelength
1064/532,585/650nm(Optional)
Operate Mode
Q-Switched,Spt,Long Pulse Hair Removal Mode
Spot Size
2-10mm,6-18mm
Optical Delivery
Articulate Arm
Operate Interface
11.6′′ True Color Touch Screen
Beam Profile
Flat-Top Mode
Energy Calibration
External & Self-Restoration
Repetition Rate
Max. 10 Hz (1064nm, 532nm, Spt Mode)
Aiming Beam
Diode 655nm(Red), Brightness Adjustable
Cooling System
Advanced Air & Water Cooling System
Power Supply
AC 100-240V, 50/60Hz
Transport Package
Aluminum Packing
Specification
79*43*88cm/72.5kgs
Trademark
Apolomed
Origin
China
HS Code
8543709990
Production Capacity
2000PCS/Year
Product Description
Q-Switched nd yag equipment Q-Switched laser system machine nd yag laser tattoo removal machinePrinciple
The high peak power and short pulse duration delivers efficient destruction of the target chromophore such as tattoo ink, pigment or collagen. The electro-optic (EO) Q-Switch, acting as a high-speed shutter, stores energy between pulses enabling the laser to produce peak power output of 200MW in 6ns pulse width. It forces energy at a high rate, the target chromophores vibrate and shatter, without harming the surrounding skin on all skin.
Our Advantages
Flat-top beam profile ensure the energy is distributed evenly
OUR SPECIAL DESIGNED HANDPIECE
The HS-290B handpieces can generate different flat-top spot shapes with special design for uniform beam profile are ideal for tattoo removal, perfect for skin rejuvenation and resurfacing with very fast recovery time.
Applications
Specifications
| Model Name | HS-290B | |||
| Laser Type | EO Q-Switch Nd:YAG laser | |||
| Wavelength | 1064/532,585/650nm(optional) | |||
| Operate mode | Q-Switched mode,SPT mode,Long pulse hair removal mode | |||
| Beam profile | Flat-top mode | |||
| Pulse width | ≤ 6ns (Q-Switched mode),300us(SPT mode) | |||
| 5~30 ms (Hair removal mode) | ||||
| Pulse energy | Q-Switched (1064nm) | |||
| Max.1200mJ | ||||
| Repetition rate | Max. 10Hz | |||
| Spot size | 2~10mm | |||
| Energy calibration | External & self-restoration | |||
| Operating mode | 1./2./3.pulse support | |||
| Optical delivery | Articulated arm | |||
| Operate interface | 11.6" true color touch screen | |||
| Aiming beam | Diode 650nm(red), brightness adjustable | |||
| Cooling system | Advanced air & water cooling system | |||
| TEC cooling system(optional) | ||||
| Power supply | AC100V ~240V, 50/60HZ | |||
| Dimension | 79*43*88cm (L*W*H) | |||
| Wright | 72.5Kgs | |||
