Automatic Rubber Vulcanizing Press Machine, Frame Hydraulic Vulcanizer/Curing Press, Column Floor Mat Tiles Molding Press

Product Description

Automatic Rubber Vulcanizing Press Machine, Frame Hydraulic Vulcanizer/Curing Press, Column Floor Mat Tiles Molding Press Company Introduction:
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based"since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
Detailed Product Description: Rubber Vulcanizing Machinery
1.Simple structure, reliable operation
2.Convenient maintenance
3.Has enough lateral stiffness

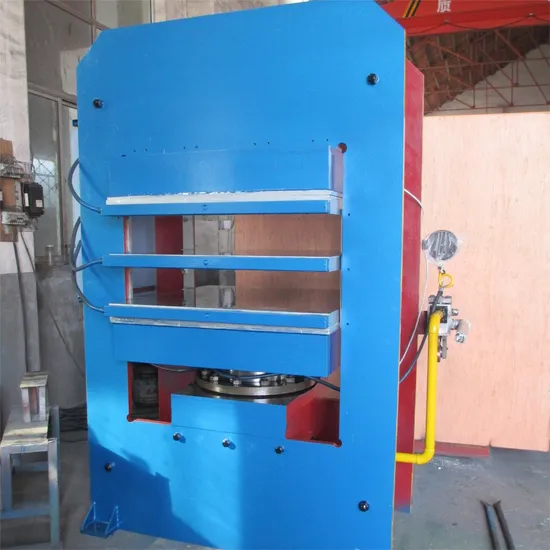

Pictures:
Specification:
1.This series is mainly used to vulcanize common rubber conveyor belt, nylonor belt ,PVC/PU conveyor belt ,steel wire core conveyor belt fabric core parallel adhesive tape.
2.Frame-type structure , hot plate and plunger are high quality material ,has the features with precision machining, difficult to abrasion, anticorrosion, convenient maintenance ,stable working pressure ,and easy to adjust.
3.This type of machine is control by PLC , valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine.
4.The working layer number can be designed as the request.
Technical Parameters:

Model	XLB350x350x2	XLB400X400X2	XLB600X600X2/4	XLB750x850x2	XLB900x900x2	XLB1200x1200x1/2
Nominal mold clamping force(MN)	0.25	0.5	1.0	1.6	2.5	3.15
Space between hot plate(mm)	125	125	125	125	200	250
Working lager of hot plate	2	2	2/4	2	2	1/2
Unit area pressure of hot plate(Mpa)	2.04	3.13	2.87	2.51	3.09	2.19
Plunger stroke(mm)	250	250	250/500	250	400	250
Heating mode	electric	electric	electric	electric	electric	steam
Main motor power(kw)	2.2	2.2	2.2	3	4	5.5
Overall dimensions(mm)	1200x580x1200	1400X820X1680	1880X580X1200	1930x930x2460	2345x930x2460	2800x1300x2300
Mzchine weight(kg)	1200	1500	2500/3100	7500/5500	6700	8800
Structural form	post type	post type	post type	post /box type	box type	box type

FAQ:
Q:How many days do you need to produce this machine?
A: Usually 15-25 days,it depends on the machine and power mode,
customized type will be 30-45 days,for production line equipments will take 2-3 moths.
Q: How to control your quality ?
A:First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly.For the smaller machine we will install the machine at our workshop to make sure it can work well.For the bigger machine, we will install the machine for our customers until it can work well.
Q: What's your machine quality guarantee?
A:Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you install the machine overseas?How long will it take?
A: Yes,we can arrange the engineer to come to help install,need to pay accordingly,like round trip tickets,salary,living and eating,etc.Time depending on the equipment your order,usually 30-60 days.
