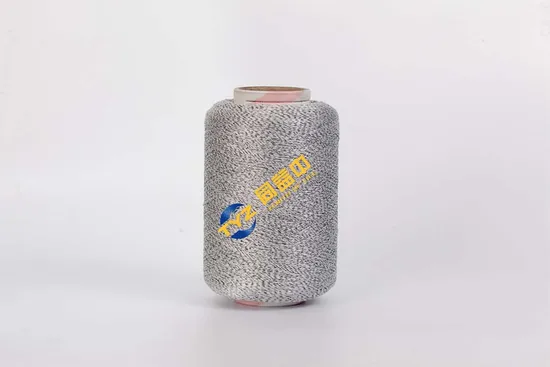

200d UHMWPE Fiber for Gloves (TYZ-TM32-200D)

Product Description

Product Introduction DOYENTRONTEX® fiber is an UHMWPE (Ultra High Molecular weight Polyethylene) fiber developed by BJTYZ about 20 years ago.DOYENTRONTEX® fiber has a unique combination of properties. The density is slightly less than 1 g/cm3, so the fiber floats on water. But the tenacity is the highest in the world and can be up to 15 times that of a good quality steel. The modulus is very high and is second only to that of special carbon fibers grades. Elongation at break is as low as for other high performance fibers, but due to the high tenacity the energy to break is high. Nowadays DOYENTRONTEX® fiber has been used in lots of application areas. Advantage High strength and high modulus,the tenacity can be up to 15 times that of a good quality steel
Low density:0.97g/cm3, lighter than water
High impact resistance
Anti-aging and anti-UV capability
Corrosion and sea water resistance
Abrasion and fatigue resistance
Low dielectric constant,high electrical resistance and a dielectric loss factor
Temperature resistance:the strength and modulus increase at low temperature Main Applications: Personal protection(Body armor, Bomb suppression blanket, Ballistic helmet, Ballistic plate)
Bulletproof armour (Armored vehicle, Police vehicle, Anti-explosion yacht)
Oceaneering(Drilling platform, Anchor cable, Towrope, Mooring rope, Terminal hoisting rope)
Industrial application(Cut-resistant glove, Hoisting rope, Wind power cable)
Aerospace engineering(Re-entry module of shenzhou spacecraft recovery system, Aviation cages, High precision space craft)
Marine fishery(Commercial fishing nets, Marine aquaculture net)
Outdoor sports(Climbing rope, Parachute rope, Sailing rope, Kite line, Fishing line)
Note1:1g/d=0.883cN /dtex,1 cN /dtex=95.098MPa Industrial Standard FZ/T 54027-2010 Note2: The industrial standard is drafted by BJTYZ

Product Classification			Level (standard)	Tenacity g/d	Modulus g/d	Applications
Denier	Dtex	Linear density
30	33	L Low linear density	TM32,TM35	36-39	≥1320	Fishing\Sports\ Medical Applications
50	55		TM32,TM35	36-39	≥1320	Fishing\Sports\ Medical Applications
80	88		TM32,TM35	36-39	≥1320	Fishing\Sports\ Medical Applications
100	110		TM32,TM35	36-39	≥1320	Fishing\Sports\ Medical Applications
200	220		TM32,TM35	36-39	≥1320	Fishing\Sports\ Medical Applications
400	440	M Middle linear density	TM32,TM35	35-38	≥1210	Protection\Textile
600	660		TM32,TM35	35-38	≥1210	Protection\Textile
800	880		TM32,TM35	35-38	≥1210	Protection\Textile
1200	1320	T Thick linear density	TM32,TM35	33-36	≥1210	Rope\Net
1600	1760		TM32,TM35	33-36	≥1210	Rope\Net
2400	2640	H High linear density	TM32,TM35	33-36	≥1210	Rope\Net

Linear density	Level	Tenacity cN/dtex	Modulus cN/dtex	Breaking elongation %
L ≥50dtex ≤222dtex	TM30	≥31	≥970	≤4
	TM32	≥33	≥1150
	TM35	≥36	≥1200
M ≥222dtex ≤888dtex	TM30	≥30	≥950
	TM32	≥32	≥1050
	TM35	≥35	≥1100
T ≥888dtex ≤2222dtex	TM30	≥28	≥925
	TM32	≥30	≥1000
	TM35	≥33	≥1050
H ≥2222dtex ≤3555dtex	TM30	≥25	≥800	≤4
	TM32	≥28	≥900
	TM35	≥32	≥1025
