Ahyw High Precision Guillotine Shearing Machine Factory Directly Supply

Product Description

Products Description Product Description Note: Dear customers, machines due to different parameters, configuration and other requirements will produce different prices, please consult customer service.
To view more products, please click on product keywords...

Main Products
Press Brake	Laser Cutting Machine	Bending Center
Shearing Machine	Handheld Laser Welder	punch and shear machine
Rolling Machine	grooving machine	punching machine

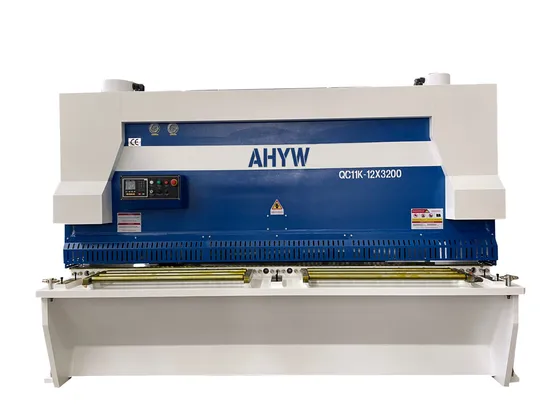

YWGS SERIES CNC HEAVY DUTY GUILLOTINE SHEARING MACHINE The Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to 30mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget. Features: * The machine welding is made by welding plant and welding robots.
* After the welding,we make stress relief process by vibration system.
* After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
* All reference surfaces and connection holes are machined. Working Environment: Power supply: three phase AC 380V 50Hz / customized Ambient temperature: 0 45 Relative humidity: 20% 80% Advantages Details Images Roller Feeding Workbench Roller on the workbench can reduce friction and protect the workpiece surface; delicate design is convenient for cutting petty materials by hand. Safety Fence Protective guards on each side can protect the operator's safety, and can clearly see the shearing situation, which is safe and convenient. Presser The pressing device adopts integral circuit and independent parallel pressing cylinder. When the sheet metal is uneven, it can be freely expanded and compressed on the sheet metal, and the pressing force can also be adjusted with the sheet material and thickness, without damage to the plate surface. Schneidero Electrics High quality electric parts are adopted to ensure machine stability, which can perform well even when the electricity is unstable. The users can easily get the replacement anywhere worldwide. SUNNY Pump American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system HIWIN Ball Screw & Linear Guide High performance decelerating motor, precision HIWIN ball screw and dual linear guide rail are adopted for CNC rear stop device, and the transmission positioning accuracy is less than ±0.1mm. Rear Pneumatic Sheet Support Rear pneumatic support system provides support and allows more precise cuts by keeping the material lifted throughout the cut, avoiding hanging down the wide and thin sheets.

TYPE	Throat Depth (mm)	Cutting Width (mm)	Width (mm)	Dimension (mm)	Cutting thickness (mm)	Stroke Number (t/m)	Weight (t)	Power (kw)
6*2500	100	2500	410	3120*1600*1900	6	≥15	5	7.5
6*3200	100	3200	410	3800*1600*1900	6	≥15	5.7	7.5
6*4000	100	4000	500	4600*1600*2040	6	≥13	7.5	7.5
8*2500	100	2500	410	3030*1620*1930	8	≥12	5	7.5
8*3200	100	3200	570	3800*1800*2100	8	≥12	7.5	11
8*4000	100	4000	570	4600*1800*2170	8	≥12	/	11
10*2500	100	2500	570	3100*1850*2100	10	≥10	6.5	11
10*3200	100	3200	570	3800*2000*2130	10	≥10	8.5	11
10*4000	100	4000	570	4600*2000*2130	10	≥10	11	11
12*2500	100	2500	540	3200*2000*2050	12	≥10	7	18.5
12*3200	100	3200	600	3900*2100*2500	12	≥10	11	18.5
16*2500	100	2500	550	3330*2000*2240	16	≥10	8.5	22
16*3200	100	3200	600	3850*2020*2460	16	≥6	11.4	22
16*4000	100	4000	600	4700*2000*2550	16	≥7	14.6	22
20*2500	120	2500	600	3100*2000*2510	20	≥6	12	30
20*3200	120	3200	800	3920*2300*2800	20	≥5	17.6	30
20*4000	120	4000	800	4900*2200*2800	20	≥4	21.5	30
25*2500	120	2500	780	3100*2330*2850	25	≥6	18.2	37
30*2500	120	2500	780	3200*2350*2800	30	≥6	20	45

Packing & Delivery Company Profile Facilities & Equipment Customer Photos Certification We warmly invite you to visit our factory!
