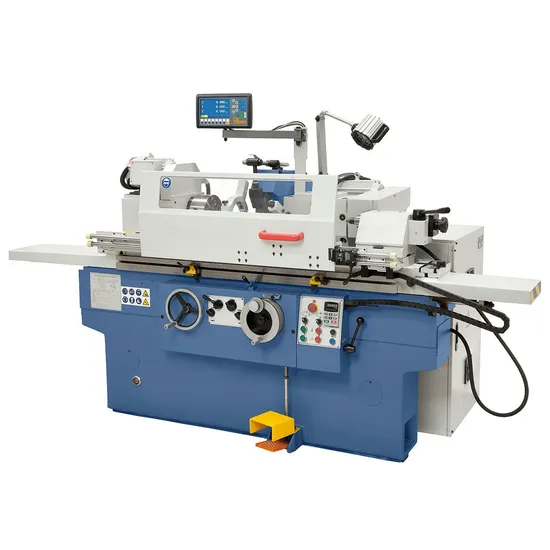

M1432bx2000 High Precision Universal External Cylindrical Grinding Machine
| US$8,000.00-39,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M1432Bx2000
Type
Surface Grinding Machine
Processing Object
Metel
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Center Height
180mm
Dia Ground(O.D)
8-320
Max Length Ground(O.D)
1000
Center Taper
Mt4
Transport Package
Plywood Case
Specification
3490kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
Universal Cylindrical Grinding Machine FEATURES:
1) Universal
2) Precise
3) With high rigidity
4) Reliable performanceSPECIFICATIONS:
| MODEL | UNIT | SPECIFICATIONS | |||
| M1432B×1000 | M1432B×1500 | M1432B×2000 | M1432B×3000 | ||
| General capacity | |||||
| Distance between centers | mm | 1000 | 1500 | 2000 | 3000 |
| Center height | mm | 180 | 180 | 180 | 180 |
| Dia.Ground(O.D) | mm | 8~320 | 8~320 | 8~320 | 8~320 |
| Dia.Ground(I.D) | mm | 30~100 | 30~100 | 30~100 | 30~100 |
| Max.length ground(O.D) | mm | 1000 | 1500 | 2000 | 3000 |
| Max.length ground(I.D) | mm | 125 | 125 | 125 | 125 |
| Max weight of work piece | kg | 150 | 150 | 150 | 150 |
| Workhead | |||||
| Swiveling angle | +90 | +90 | +90 | +90 | |
| Center taper | MT | 4 | 4 | 4 | 4 |
| Spindle speed | r/min | 50HZ:25-220 60HZ:30-364 | 50HZ:25-220 60HZ:30-364 | 50HZ:25-220 60HZ:30-364 | 50HZ:25-220 60HZ:30-364 |
| Wheelhead | |||||
| Wheel spindle speed | r/min | 1670 | 1670 | 1670 | 1670 |
| Wheelhead rapid travel | mm | 50 | 50 | 50 | 50 |
| Max travel | mm | 246 | 246 | 205 | 205 |
| Swiveling angle | ° | ±30° | ±30° | +10° | +10° |
| Hand feed per.rev | mm | rough:2.0 fine:0.5 | rough:2.0 fine:0.5 | rough:2.0 fine:0.5 | rough:2.0 fine:0.5 |
| Hand feed per.gra | mm | rough:0.01 fine:0.0025 | rough:0.01 fine:0.0025 | rough:0.01 fine:0.0025 | rough:0.01 fine:0.0025 |
| Max dimension of wheel(OD×W×ID) | mm | 400×50×203 | 400×50×203 | 400×50×203 | 400×50×203 |
| Internal grinding | |||||
| Spindle speed | r/min | 10000/15000 | 10000/15000 | 10000/15000 | 10000/15000 |
| Dimension of wheel | mm | max:50×25×13 min:17×20×6 | max:50×25×13 min:17×20×6 | max:30×25×10 min:17×20×6 | max:30×25×10 min:17×20×6 |
| Table | |||||
| Hand feed per rev. | mm | 6 | 6 | 6 | 6 |
| Max swivelling angle of table | ° | clockwise:3° widdershins:7° | clockwise:3° widdershins:6° | clockwise:2° widdershins:5° | clockwise:2° widdershins:3° |
| Longitudinal traverse speed of table | m/min | 0.1~4 | 0.1~4 | 0.1~4 | 0.1~4 |
| Tailstock | |||||
| Center taper | MT | 4 | 4 | 4 | 4 |
| Quill travel | mm | 30 | 30 | 30 | 30 |
| Motor | |||||
| Wheelhead motor power | Kw | 5.5 | 5.5 | 5.5 | 5.5 |
| Internal grinding | Kw | 1.1 | 1.1 | 1.1 | 1.1 |
| Power of workhead motor | Kw | 1.5 | 1.5 | 1.5 | 1.5 |
| Machine | |||||
| Gross weigh | Kg | 5300 | 6100 | 7900 | 9900 |
| Packing dimension | mm | 3220×2000×2050 | 4220×2000×2050 | 5400×2000×2050 | 7390×2280×2050 |
