High Speed Hot & Cooling PVC Plastic Mixing Machine / Mixer
| US$8,500.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
300/600
Application
Powder
Application Area
Engineering & Construction
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Disc
Stirring Type
Diving
Warranty
1 year
Working
High Speed Mixer
Mixer
Shrl 300/ 600
Total Cubage(L)
300/600
Effective Cubage(L)
225/380
Mixed Speed (Rpm)
475/950/80
Heating& Cooling Manner
Electric Heating Self-Friction/Water Cooling
Mixed Time(Min/Batch)
8~12
Motor Power(Kw)
40/55/11
Dimension L×w×h(mm)
4800*2640*2480
Weight(Kg)
3600
Motor
Siemens
Contactor
Schneider
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Continuous Operating
Specification
SHRL 300/600
Trademark
DK
Origin
Qingdao of Shandong
HS Code
8477209000
Production Capacity
500 Kg/H
Packaging & Delivery
Package Size
2600.00cm * 2300.00cm * 250.00cm
Package Gross Weight
10000.000kg
Product Description

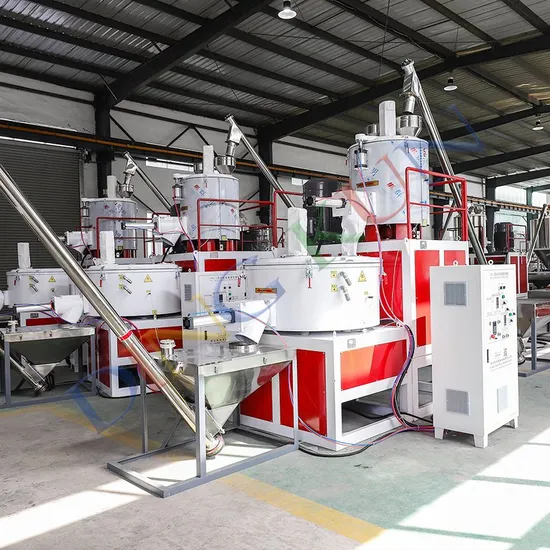

PVC high-speed plastic heating/cooling mixer unitProduct Description
High speed mixers are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.
1,Plastic mixer can be used for a variety of plastic raw materials, mixing, drying and other processes.
2,The barrels and paddles are made of 304 stainless steel, mixing performance, long life, easy to clean.
3,Plastic mixer has two kinds of heating function.
4,It is equipped with a quick feeding device.
5,The opening of the lid is controlled by pneumatic and hydraulic systems.
| Model | SRL- Hot/cool | SRL- Hot/cool | SRL- Hot/cool | SRL- Hot/cool | SRL- Hot/cool |
| Total cubage(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective cubage(L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
| Mixed speed (rpm) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
| Heating& cooling manner | Electric heating self-friction/water cooling | ||||
| Mixed time(min/batch) | 8~12 | 8~12 | 8~12 | 8~12 | 8~15 |
| Motor power(kw) | 14/22/705 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
| Dimension L×W×H(mm) | 1950*1600*1800 | 4580*2240*2470 | 4800*2640*2480 | 4600*3000*4050 | 5170*3200*4480 |
| Weight(kg) | 2200 | 3400 | 3600 | 4800 | 6200 |
