Bridge Multiblade Block Cutter Granite Marble Stone Cutting Machinery

Product Description

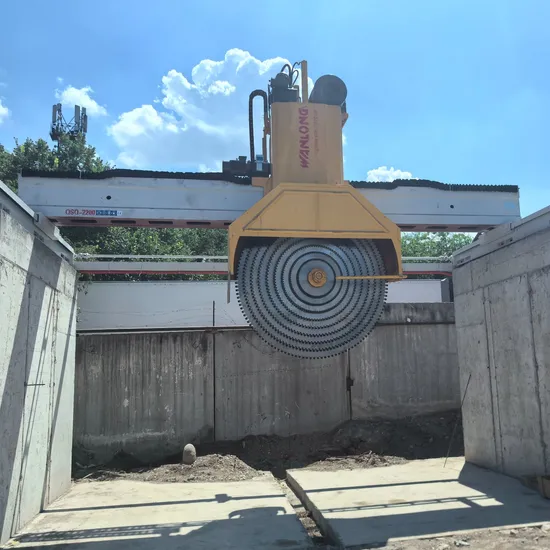

Bridge Multiblade Block Cutter (QSQ2200/2500/3000)
High efficiency for cutting block into slabs with multi-blade combination, this machine is the ideal equipment for producing large slabs.
Comparing with normal single blade cutting machine, this machine has following advantages:
Trolley is not necessary when cutting/ You can lie the block on the ground/cutting several blocks of different sizes at one time.
The crossbeam movement on the side beams. There precise cutting and less maintenance are available by this machine.
The machine can take multi-blades(2500/2000/1600/1200/800mm, 2200/2000/1800/1600/1370/1160/950/740/530mm). Daily production capacity for MID-hard granite can be 170sqm while the single blade life is only 30sqm.
Mechanical system
Wide-span crossbeam of bridge structure, large block cutting available
Crossbeam is made of strong cast iron to avoid distortion after long-term use
Dustproof design of the slide track ensures the precise guide movement & long lifespan
Double V-Shape guide rails enhance the smooth cutting and movement
Precise movement of cutting head in horizontal direction by precision rack & gear
Guide rail on the crossbeam is in oil bath and protected from water and dust
Electrical system
Cross movement of the cutting head on the crossbeam is driven by motor equipped with OMRON rotary encoder by which the precision is guaranteed
Installed with Panasonic frequency transducer and OMRON PLC, programmable and fully automatic, stability and flexibility guaranteed
Friendly human-machine interface design, easy operation
C. E. Certificate NO. -CN. CE. 0177-05108.

QSQ-2200 QSQ-2500 QSQ-3000

Max.diameter of blade	mm	2200	2500	3000
Max.No. of blades	pc	8	5	1
Recommended Blade Combination	mm	2200 2000 1800 1600 1400 1200 1000 800	2500 2000 1600 1200 800
Recommend saw blade thickness	mm	6.5	32	8.0
Main motor power	KW	45	45	37
Max.Cutting size(L x W x H)	mm	3200*1800*950	3000*1800*1100	2500*1800*1350
Overall dimensions (L x W x H)	mm	7300*3800*5500	7300*3800*5500	7300*3800*6100
Water consumption	m3/h	6	6	6
Approximate weight	Kg	10000	11000	12000

Technical Parameter	QSQ-2200	QSQ-2500	QSQ-3000
Max. blade diameter/mm	2200	2500	3000
Max. cutting length/mm	3200	3000	2500
Max. cutting width/mm	1800	1800	1800
Max. cutting height/mm	950	1100	1350
Max. No. of blades	9	5	1
Main motor power/kw	45	45	45
Power requirement	3Phs380V50Hz
Overall dimension (LxWxH)/mm	7300X3800X5500	7300X3800X5500	7300X3800X6100
Total Weight/kg	10, 000	11, 000	12, 000
