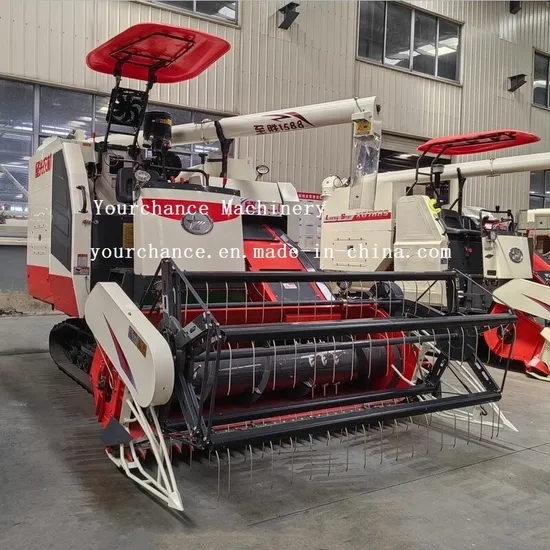

China Factory Sell 4lz-6.0 Full-Feed Truck Type Rice Wheat Combine Harvester

Product Description

China Factory sell 4LZ-6.0 Full-feed Truck type Rice wheat combine harvester
4LZ-6.0 harvester Main Features and Advantages :
1,Chassis section:
Unique chassis design with high load capacity, chassis ground clearance reaches 650mm,which make goods passing performance in muddy paddy field.
Unique thrust wheel design features long working life time.
Upgrade tension structure features high reliability.
2,Threshing and Cleaning section:
Adopts big threshing cylinder to increase hitting area and extend hitting time to achieve better threshing performance.
Adopts six enhanced concave interchangeable,easy maintenance.
Specially designed belt drive structure features long life time, stable power output and low maintenance cost.
3,Header and Conveying section:
Upgraded reel structure with spring tooth, features good anti-wind performance.
4,Oil tan and grain tank section:
Big oil tank features long working time.
1400-1600 L big grain tank features continuous working.
5.High grain discharging pipe,360 Degrees hydraulic Auto Unloading, brings convenience.
6. There are Canopy(Sunshade) and Deluxe air-conditioning cabin to meet different customers' request.
4LZ-6.0 harvester Main specification and Technical parameters :

Model	4LZ-6.0
Structure type	Self-propelled,"L" Longitudinal flow, Full-feeding,Rubber track type
Overall Dimension (LxWxH) (mm)	5170x2620x293
Weight (kg)	3600
Suitable crops	Rice, wheat
Harvesting capacity (Hectare/H)	0.5-0.9
Cutting
Cutting width(mm)	2200m
Height adjusting type (mm)	Hydraulic
Cutting height (mm)	20-950
Feeding rate (kg/s)	6.0
Power
Engine brand and model	Changchai4G33TC, 75KW/102HP Diesel engine
Type	Vertical, Water cool, Four-stroke, Direct Injection
Fuel Tank	130 L
Displacement (cc)	2700
Fuel consumption (L/H)	7-11
Drive system
Gearbox	Hydraulic Gear Box ZKB85
Rubber Truck specification	500/550*90*53/56
Mini Ground clearance	330 mm
Transmission type	HST, 45cc
Traveling speed (m//s)	F/R, Low 0-1.43,High0-2.65, Harvesting 0-1.87
Steering	Hydraulic
Threshing+Separating system
Threshing cylinder (mm)	2041*640
Cleaning type	Vibrating Sieves+ Centrifugal Fan
Grain unloading
Grain tank	1400 L
Grain unloading type	High discharging pipe type, Auto Unloading, 360Degrees
Performance Technical data
Lost Rate(%)	Rice≤2.0, wheat≤2.0
Broken Rate(%)	Rice≤1.2, wheat≤1.2
Impurity(%)	Rice≤1.0, wheat≤1.0
Covering	Canopy(Sunshade), Option: Deluxe air-conditioning cabin
Load Quantity /40HC	3 sets Sunshade type or 2 sets cabin type

Advance technology and manufacturing equipments for High quality harvester:
High quality Harvester have ISO,CE, PVOC COC,etc certificates :
Harvester Loading container for CBU shipping:
Different Configurations Harvester to meet different customers' special demand:
Harvesting in Combine harvester Work scene :
Best price will be quoted for you as soon as receive your Requirement !
