500m Truck Mounted Water Well Drilling Rig Hydraulic Water Drilling Machine Price

Product Description

500m Truck Mounted Water Well Drilling Rig Hydraulic Water Drilling Machine Price

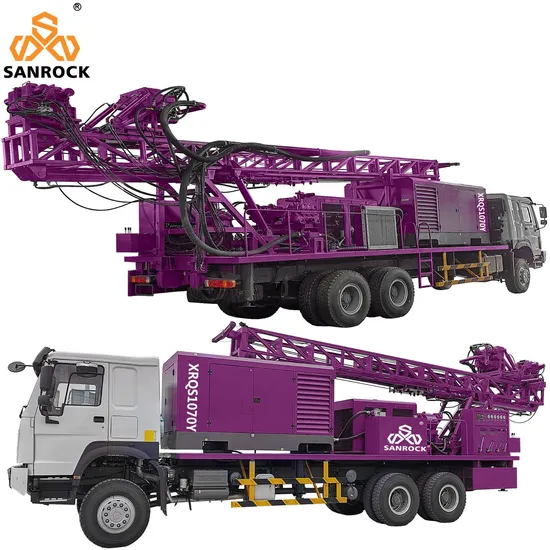

SANROCK truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project. The rig equips with powerful hydraulic motor, heavy hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.
https://sanrock.en.made-in-china.com
Product Description

SANROCK TRUCK-MOUNTED DRILLING RIG SRTM600 COMPREHENSIVE OVERVIEW
DEPTH	600M	600M	600M
DRILLING DIAMETER	268MM	350MM	505MM
DIMENSIONS	7500*2500*3200MM	10500*2500*3400MM	11500*2500*3800MM
TOTAL WEIGHT	19000KG	25000KG	29000KG
TRUCK CHASSIS
BRAND	SINO TRUCK/ DONGFENG
DRILLING TOWER,SECOND FLOOR CHASSIS
DRILLING TOWER	RETRACTABLE	RETRACTABLE	FIXED PIPE RACK TYPE
DRILL TOWER LOAD	20T	35T	50T
DRILL TOWER HEIGHT	6M	8M	8M
PULL DOWN	7T	15T	15T
PULL UP	20T	30T	35T
DRILLING RIG POWER
RATED POWER	132KW	132KW	165KW
HOIST SINGLE ROPE PULL UP	1T	2T	3T
HYDRAULIC POWER HEAD
TORQUE	8500N.M	11500NM	15500N.M
REVOLUTIONS	0-90RPM	0-90RPM	0-90RPM
OTHER PARTS AND COMPONENTS
FOAM PUMP	B-36EX1
FLOW	42L/ MIN
PRESSURE	4MPA
REVOLUTIONS	660R/ MIN
MUD PUMP	BW450/50	BW900/60	BW1200/80
FLOW	450L/ MIN	900L/ MIN	1200L/ MIN
PRESSURE	5MPA	6MPA	8MPA

Features:
1.The drilling rig can use air DTH Hammer drilling and mud drilling. 2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3.The truck chassis adopts the 6X6 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5.The power of drilling rig comes from a diesel engine, engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
7.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
7.The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
8.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
9.Competitive in price, low cost of maintain.
