High Joint Grassland Fence Machines/ Field Fence Weaving Machines/Cattle Fence Mesh Knitting Machines

Product Description

SADE Machinery full automatic grassland fencing wire mesh knitting machine
Product Description
The grassland fence machine is used to weave wrap-around fence.
It can weave the diameter wire and weft wire together automatically. It takes us many years to research and develop the machine, which has independent intellectual property rights.
It adopts sophisticated computer control and advanced manufacturing technique.
♦Parameter

Type	1422mm	1880mm	2000mm	2400mm
motor	5.5kw	7.5kw	7.5kw	11kw
Dimension	2.8*3.2*2.4(m)	3.3*3.2*2.4(m)	3.4*3.2*2.4(m)	3.9*3.4*2.4(m)
Efficiency	45row/min	≤45row/min	≤45row/min	≤45row/min
Twine diameter	1.9-2.5(mm)	1.9-2.5(mm)	1.9-2.5(mm)	1.9-2.5(mm)
Side wire diameter	2.0-3.5(mm)	2.0-3.5(mm)	2.0-3.5(mm)	2.0-3.5(mm)
Voltage	380v	380v	380v	380v
Weight	3.5T	3.8T	4.0T	4.5T
Wrap number	11	13	18	23
Minimum weft opening number	2	4	4	6
Weft number	10	12	17	22
Productivity	21600row/day (150m/h)

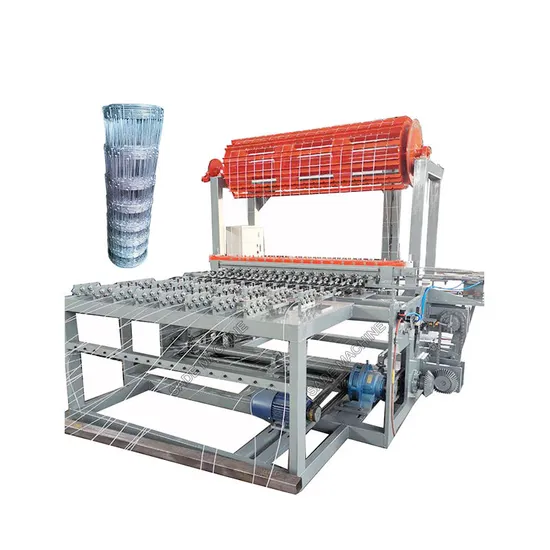

Machine


Finished Products


Product Uses

Packaging & Shipping


1. 20' container

2. The machine we will wrap in plastic and attach marks

3. Other machine elements and tools we have a wood box

4. Before loading, we will fix and check the machine

5. Before shipping, we will invite our customer to check the machine again


Company Information

Sade machinery manufacturering Co., Ltd. is a professional industrial enterprise specializing in exporting various machinery and equipment in Hebei. We have high quality professional teams, skillful talents, strong technical forces, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
Our products mainly include wire mesh machine and roll forming machine.Wire mesh machine including mainly wire drawing machines, nail making machines, hexagonal wire netting machines, gabion making machines, welding mesh machines, chain link fence machine ,expanded metal mesh machine,grassland fence making machine cleaning ball making machine and so on.
Don't hesitate to contact me....

FAQ

Q: what's the delivery time of gabion mesh machine ?
A: 30 days after we received the deposit.
Q: Could we install the machine by ourselves?
A: yes, if u can. if u have any problem, u could ask us.
Q: Could u install the machine in our factory?
A: Yes, If u need, we will arrange our engineer install the machine in our factory
Q: Could u make different voltage of this machine ?
A: we could make one type of voltage which is suited to our country
Q: Are you a manufacturer in China?
A: Yes,we are a manufacturer for producing wire mesh machine with over 25 years experience.
