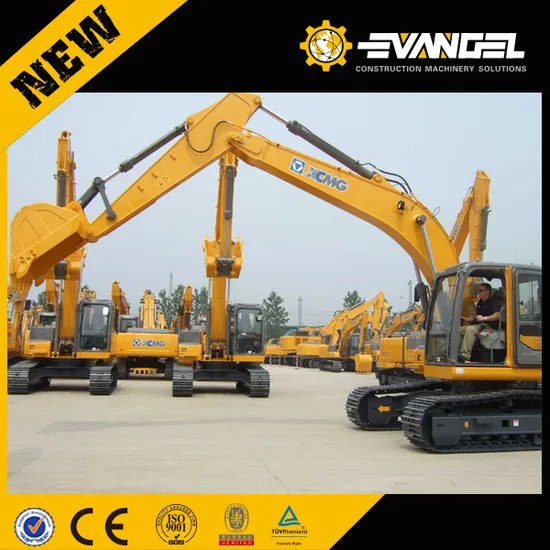

New Best 26ton Excavator Xe265 for Sale
| US$107,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XE265
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Large-Scale
Certification
ISO9001: 2000
Condition
New
Operating Weight
25500kg
Standard Bucket Capacity
1.05~1.25m3
Engine Model
Cc-6bg1trp
Rated Power/Speed
128.5/2100 Kw/Rpm
Travel Speed
5.9/4.0km/H
Max. Gradeability
35
Ground Pressure
50.1kpa
Dimension
10160*3190*3100mm
Crawer Gauge
2590mm
Transport Package
Nude Package
Specification
ISO9001
Origin
Jiangsu Province
HS Code
84295212
Production Capacity
100/Month
Product Description
Features of Original engine XE215C 21.5ton crawler crane price1.Maximum Digging Height: 9662 MM
2.Maximum Digging Depth: 6895 MM
3.Rated Speed: 5.9/4.0 KM
4.Max Digging Radius: 5810 MM
5.Machine Weight: 25500KG
6.Bucket capacity: 1.05-1.25 M3
Paraments
| Operating weight | kg | 25500 | |
| Standard bucket capacity | m³ | 1.05~1.25 | |
| Engine | Engine Model | / | CC-6BG1TRP |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo charged | / | √ | |
| Air to air intercooler | / | √ | |
| No. of cylinders | / | 6 | |
| Rated power/speed | kw/rpm | 128.5/2100 | |
| Max. torque/speed | N.m | 637/1800 | |
| Displacement | L | 6.494 | |
| The main performance | Travel speed | km/h | 5.9/4.0 |
| Swing speed | r/min | 11.3 | |
| Max. gradeability | / | ≤35 | |
| Ground pressure | kPa | 50.1 | |
| Max.Bucket digging force | kN | 161 | |
| Max.arm crowd force | kN | 125 | |
| Max.traction force | kN | 194 | |
| Hydraulic system | Main pump | / | 2 Plunger pump |
| Rate flow of main pump | L/min | 2×256 | |
| Max pressure of prime relief valve | MPa | 34.3/37 | |
| Max pressure of travel system | MPa | 34.3 | |
| Max pressure of swing system | MPa | 28 | |
| Max pressure of pilot system | MPa | 3.9 | |
| Oil capacity | Fuel tank capacity | L | 400 |
| Hydraulic tank capacity | L | 240 | |
| Engine lubrication | L | 25 | |
| Overall dimensions | A Overall length | mm | 10160 |
| B Overall width | mm | 3190 | |
| C Overall height | mm | 3100 | |
| D Overall width of upperstructure | mm | 2830 | |
| E Track length | mm | 4640 | |
| F Overall width of undercarriage | mm | 3190 | |
| G Crawer width | 600 | ||
| H Track length on ground | mm | 3842 | |
| I Crawer gauge | mm | 2590 | |
| J Clearance under counter weight | mm | 1100 | |
| K Ground clearance | mm | 485 | |
| L Min.tail swing radius | mm | 2985 | |
| Working range | A Max. digging height | mm | 9662 |
| B Max. dumping height | mm | 6810 | |
| C Max. digging depth | mm | 6895 | |
| D 8inch horizonal digging depth | mm | 6750 | |
| E Max. vertical wall digging depth | mm | 5480 | |
| F Max. digging reach | mm | 10240 | |
| G Min. swing radius | mm | 3850 | |
| Angle of arm deflection | Degree | ||
1.Method of shipment: container/ Roro
2.Payment term: T/T(30% pre-payment in advance, the balance payment before shipment.)
3.Delivery term: in 7-15 days after receiving the pre-payment.
4. The guarantee period: One year warranty service.
5.Spare parts can be supplied at any time.
Kindly contact me:
Nicole Chen/ Sales Manager
Evangel Industrial (Shanghai) Co., Ltd.
Evangel International Machinery Ltd.
(CHINESE LEADING CONSTRCUTION MACHINERY AND SPARE PARTS EXPORTER)
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Web:http://evangelchina.en.made-in-china.com
